VCM5
8476810000
| Model | VCM5 Combo Vending Machine |
| Power Supply | 220/110 V, 50/60 Hz, 20 A fuse |
| Payment Interface | MDB |
| Refrigeration System | 3/4 HP R134a R513a |
| Inner Temperature | 4°C to 20 °C (Adjustable) |
| Lighting | Three-sided LED strips |
| Dimensions | 1830mm (H) × 1056mm (W) × 830mm (D) |
| Weight | 365 kg |
| Container Loading Capacity | 12pcs/20FT, 28pcs/40FT |
| Environmental Condition | Indoor |
| Payment Options | Coin, Banknote & Card Payment |
| Networking | Support Extended Networking |
| Touch Screen | No Touch Screen |
| Specification | CE/ETL |
| Customization | Customizable |
| Packaging | Carton & Pallet |
| Country of Origin | China |

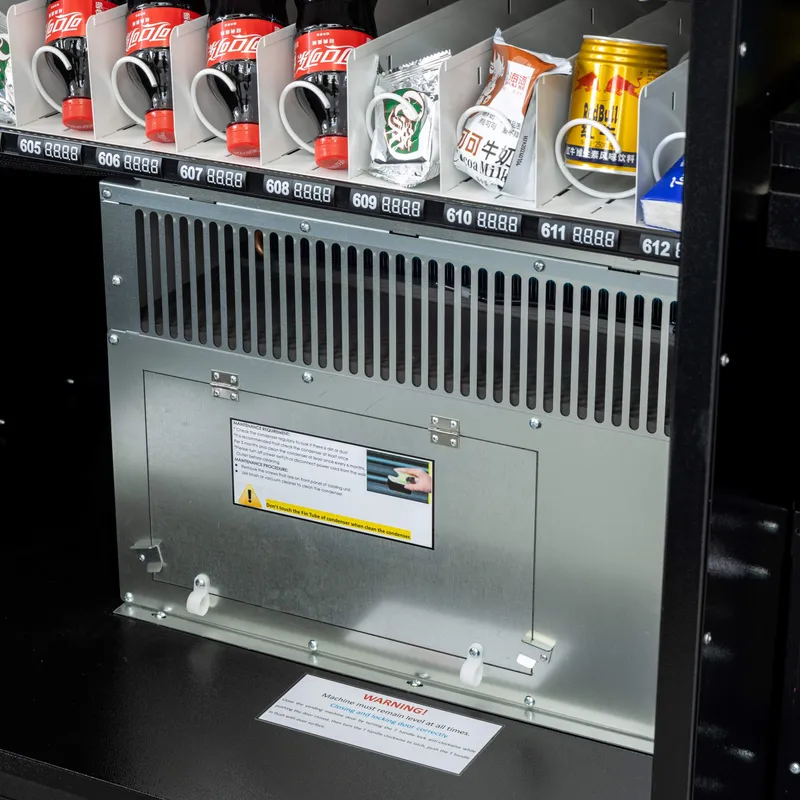

Danfoss Compressor: Equipped with a Danfoss compressor for refrigerated vending operations.
Adjustable Temperature Control: Temperature settings can be configured according to the confirmed machine specifications.45
Insulated Cabinet: An insulated cabinet and double-glazed viewing window help support refrigerated operation.

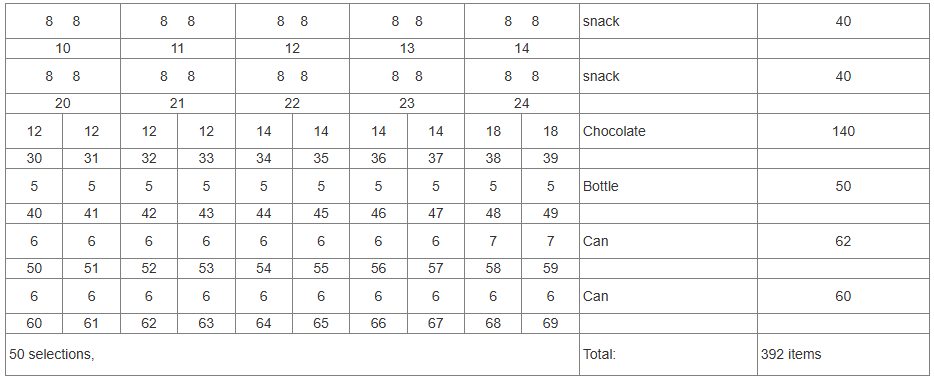

50 Product Selections: The standard tray configuration is listed as 50 selections, with final capacity depending on the confirmed configuration.
Adjustable Trays: Available with 6- or 7-tray options, adjustable tray height and a 45° tilt design for convenient loading.
Narrow Door Cutout: Designed to fit through doorways as narrow as 760 mm, subject to the machine's actual dimensions and the installation route.

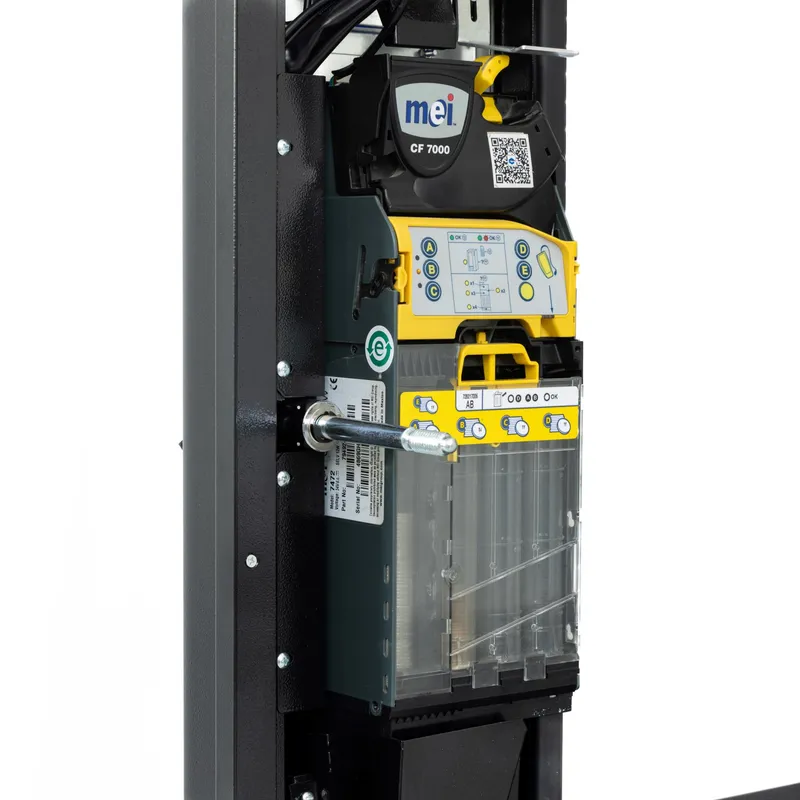

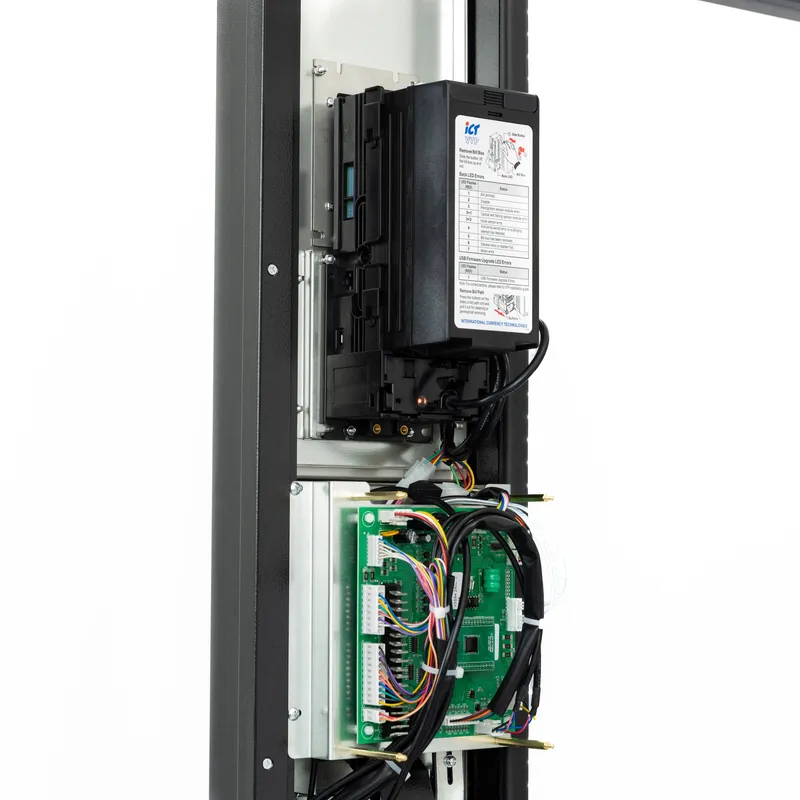

MDB Payment Compatibility: Supports compatible MDB payment devices, with payment options depending on the selected hardware.
Flexible Pricing: Electronic multi-pricing allows different prices to be assigned to products.
Vend Monitoring: A drop sensor with a retry/refund function helps address failed vending attempts.

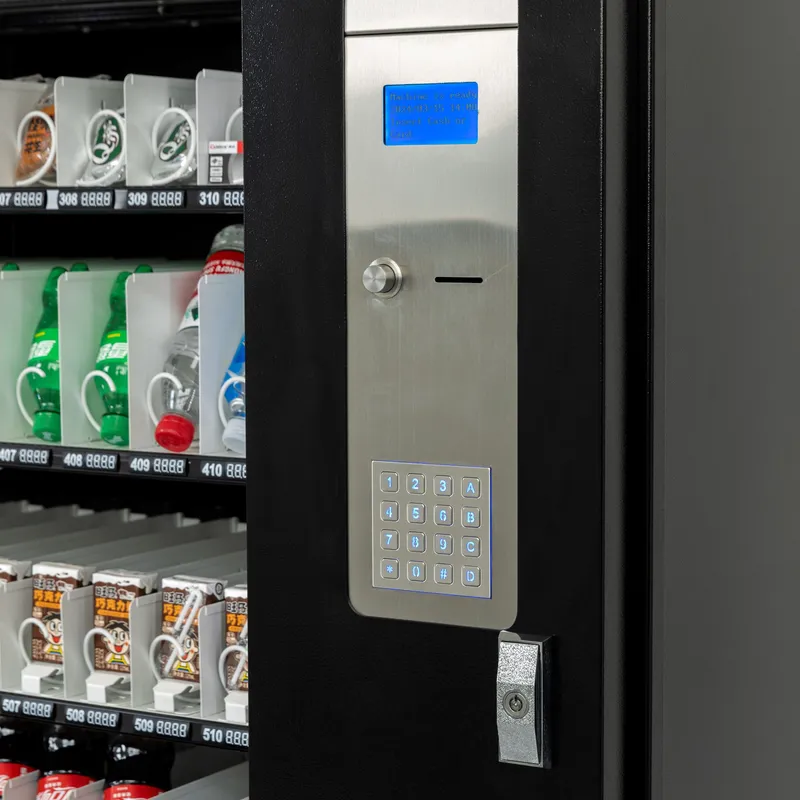

Maintenance Diagnostics: A keypad-based diagnostic program supports machine troubleshooting.
Durable Cabinet Design: Features a stainless steel panel and a high-strength cabinet structure.
Improved Product Visibility: Three-sided LED lighting and a heated glass window support product visibility and glass heating functions.

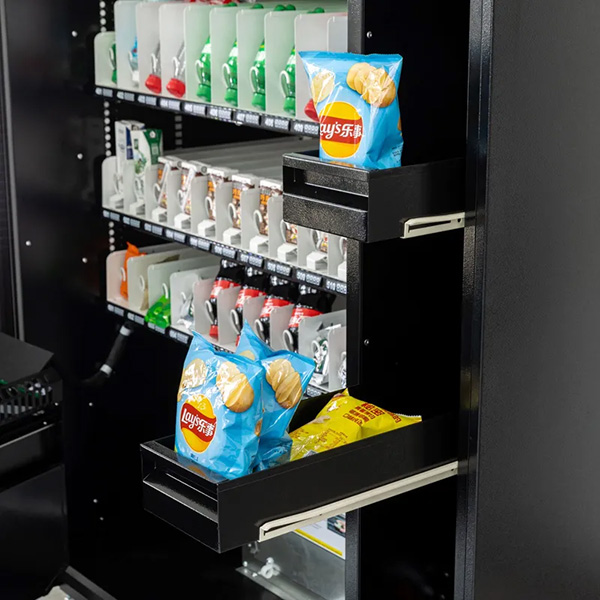

Operator Storage: Four interior storage drawers and a lockable cash box provide storage for operators.

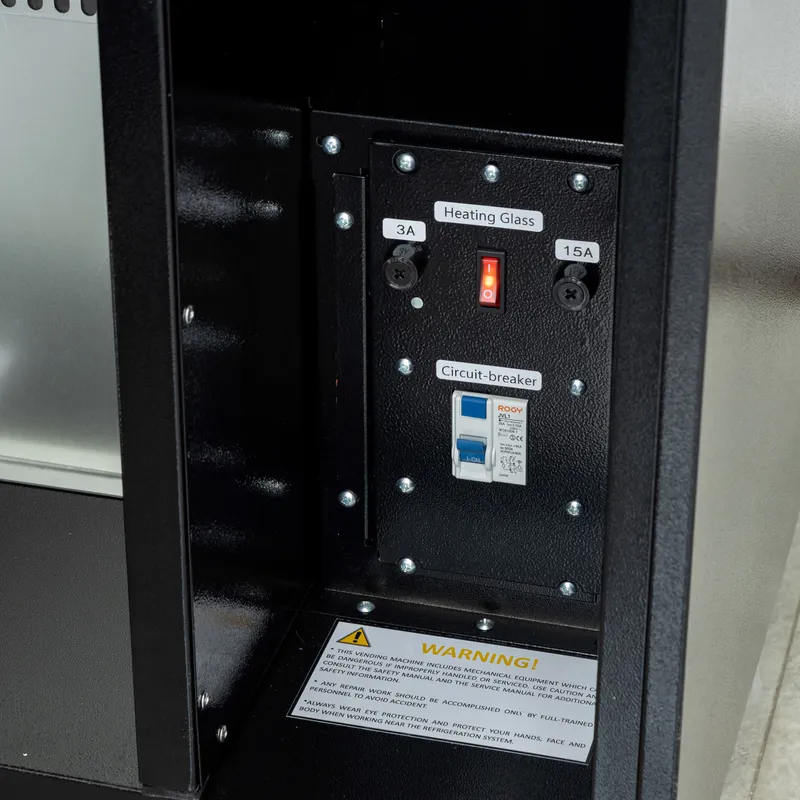

Electrical Protection: A built-in mains safety circuit breaker and 24V DC motor system are included in the listed configuration.
Combo Selections: 30
Height: 1845mm
Width: 763mm
Depth: 713mm
Weight: 250kg
90°Door
Heated Glass
Interior Storage
DualZone
Cashless Ready
7th Tray Option
High Capacity Option
LED Lighting Programmable
Narrow Door Cutout to get in to 760mm doors
Combo Selections: 30
Height: 1830mm
Width: 762mm
Depth: 830mm
Weight: 300kg
90°Door
Heated Glass
Interior Storage
DualZone
Cashless Ready
7th Tray Option
High Capacity Option
LED Lighting Programmable
Narrow Door Cutout to get in to 760mm doors
Combo Selections: 40
Height: 1830mm
Width: 890mm
Depth: 830mm
Weight: 335kg
90°Door
Heated Glass
Interior Storage
DualZone
Cashless Ready
7th Tray Option
High Capacity Option
LED Lighting Programmable
Narrow Door Cutout to get in to 760mm doors
Combo Selections: 50
Height: 1830mm
Width: 1050mm
Depth: 830mm
Weight: 365kg
90°Door
Heated Glass
Interior Storage
DualZone
Cashless Ready
7th Tray Option
High Capacity Option
LED Lighting Programmable
Narrow Door Cutout to get in to 760mm doors
Combo Selections: 50
Height: 1830mm
Width: 1215mm
Depth: 830mm
Weight: 395kg
90°Door
Heated Glass
Interior Storage
DualZone
Cashless Ready
7th Tray Option
High Capacity Option
LED Lighting Programmable
Narrow Door Cutout to get in to 760mm doors
What payment terms do you accept?
We accept the following payment methods:
T/T (Telegraphic Transfer) (standard for most orders):30% deposit to confirm the order; 70% balance paid before shipment.
Irrevocable Letter of Credit (L/C at sight) (available for large orders).
What are your shipping and delivery options?
What is your production lead time?
What after-sales support do you provide?
How do you support spare parts supply and delivery?
Established in 2005, we are a leading vending machine manufacturer specializing in global export and distributor partnerships.
We operate two self-owned factories, JSBS and OMS, in Changshu, Jiangsu Province, offering a full product line including combo vending machines, coffee machines and parts, ice makers, wine dispensers, popcorn vending machines, claw crane vending machines, and more.
We welcome overseas distributors, wholesalers, and project contractors for long-term exclusive regional cooperation with tailored dealer support policies.
