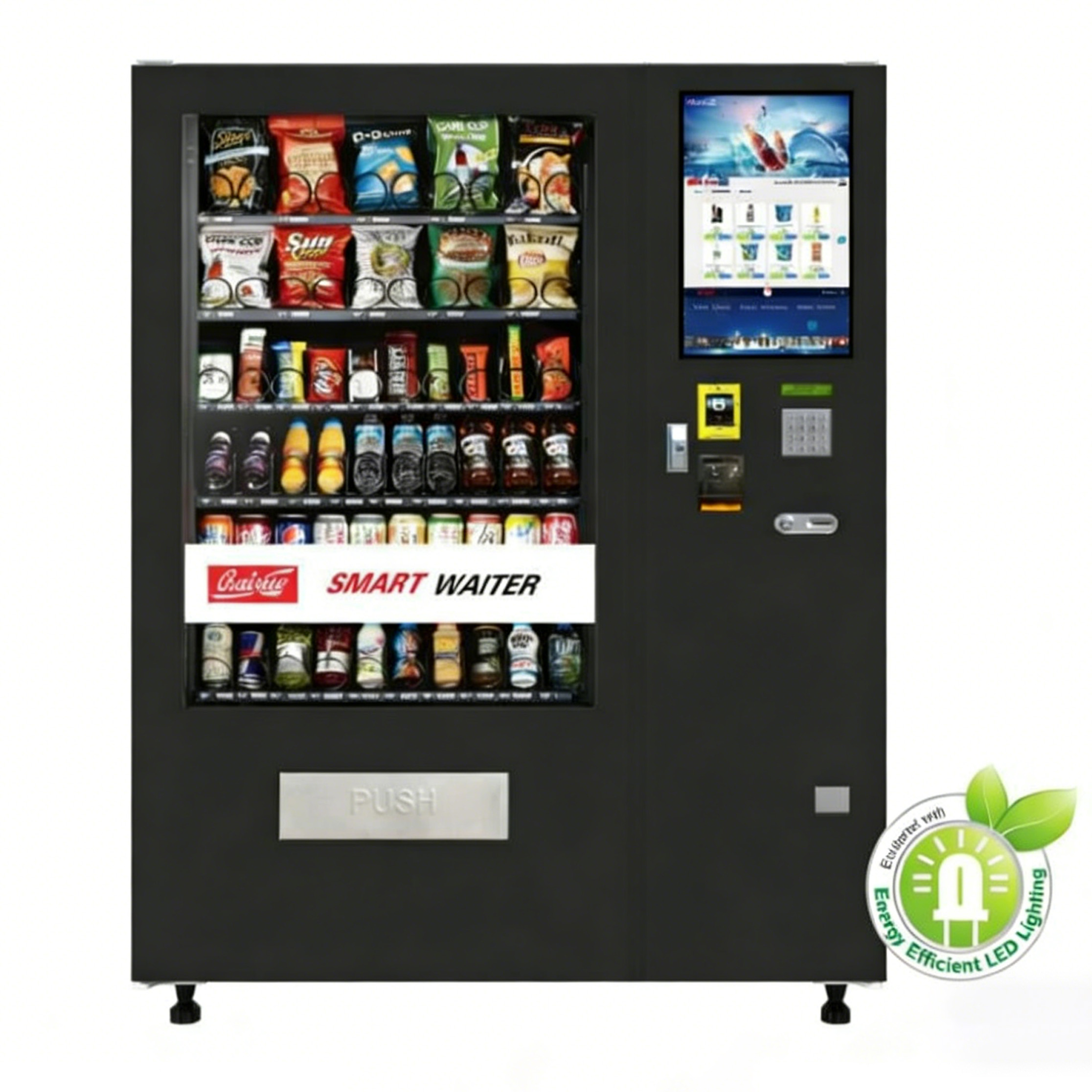

VCM3-5000SC22 21.5 Inch Touch Screen Drink and Snack Vending Machine with Elevator

The VCM3-5000SC22 is a high-capacity lifting combo vending machine with 21.5" touch screen, gentle lift system for fragile items, DEX data communication, and double-glazed window; ideal for offices, malls, and high-traffic public areas, supporting cashless payment with reliable performance.
Availability:
Quantity:
facebook sharing button
whatsapp sharing button
linkedin sharing button
twitter sharing button
wechat sharing button
sharethis sharing button
  • VCM3-5000SC22

  • JSBS

  • 8476810000

Technical Specifications

Model VCM3-5000SC22
Dimensions(W×D×H) 1356×830×1830(mm)/53.3×32.6×72(in.)
Weight ( N.W/G.W) 440kg/475kg, 970Ibs/1058.2Ibs
Power supply AC220V~240V 50HZ/AC110V~130V 60HZ
Power Consumption 670W
Payment Systems All Industy standard MDB compatible devices
Inner Temperature +3°C ~ +25°C(adjustable)
Container Loading Qty 10pcs/20FT, 21pcs/40FT
Capacity (MAX) 390 items (210 snacks + 180 drinks)
Why choose a touch screen vending machine with an elevator system for my business?

Investing in a touch screen vending machine with an elevator system is a strategic move to upgrade your automated retail business. Here’s why this model is the superior choice for high-end locations:

  • Zero-Damage Delivery: Unlike traditional coil machines, the advanced elevator vending system gently lifts products from the shelf to the delivery bin. This makes it the ultimate fragile items vending machine, ensuring that delicate items like glass-bottled drinks, electronics, or gourmet snacks reach your customers in perfect condition.

  • Enhanced User Experience: A large, interactive 21.5-inch touch screen does more than just facilitate purchases—it acts as a 24/7 digital billboard. You can use it to display promotional videos, nutritional information, or advertisements, significantly increasing your smart retail engagement and brand visibility.

  • Maximum Versatility: This high-capacity combo vending machine supports a wider range of product sizes and packaging types than standard models. It is the perfect commercial vending solution for offices, premium malls, and luxury hotels where product variety and presentation are key.

  • Data-Driven Operation: Equipped with smart remote monitoring, this machine allows you to track sales, manage inventory, and optimize your routes in real-time, effectively maximizing your ROI through streamlined vending machine business management.

Advantages

This vending machine features an anti-vandalism sliding coin insert and supports pairing two motors together to vend wider products. Its elevator can deliver a wide range of fragile products, while an interchangeable belt tray is available for boxed products. It can connect up to 2 slave machines, offers a free cloud backend, and is compatible with an age verification reader.

GENERAL FEATURES

  1. 21.5 inch touch screen for advertising and product selecting
  2. Vend sensor in the dilivery box guarantee product delivery
  3. Vandal-resistant stainless steel keypad
  4. Stainless steel coin insert to prevent fraud and vandalism
  5. Anti-theft device installed in the delivery box
  6. Tray access with 90° door

ENERGY EFFICIENCY

  1. Fully insulated & strong cabinet
  2. Double glazed viewing window with argon gas interspaces
  3. LED lighting to enhance product presentation & reduce energy costs

COOLING

  1. Modular cooling system, removed easily from the front for off site cleaning and service
  2. Excellent cooling unit with famous brand compressor
  3. Dual temperature zones for drink and snack
  4. Preserving temperature: between 3°C and 8°C in the lower 3 trays, between 14°C and 25°C in the upper 3 trays

SHELVING

  1. Adjustable shelf height every 15mm
  2. Snack shelves tilt down 25° for easy loading
  3. Dual or single spirals for different sized products
  4. 360° helix adjustablility in 20° increments provides flexibility to vend virtually anything

PAYMENT SYSTEMS

  1. MDB protocol support for all industry standard devices including cash, coin, debit and credit systems
  2. DEX and cashless payment system enabled to allow online remote monitoring

ADDITIONAL OPTIONS

  1. High capacity can tray can hold up to 90 12oz (330ml) cans
  2. Back lighted stainless steel keypad, plastic coin insert slot & keypad
  3. Glass heater to avoid condensation
  4. Can be combined with slave machine
  5. Lifting system can deliver a wide range of fragile products
gongchangwaiguan-yaan

Why Choose Us

Established in 2005, we are a leading vending machine manufacturer specializing in global export and distributor partnerships.


We operate two self-owned factories, JSBS and OMS, in Changshu, Jiangsu Province, offering a full product line including combo vending machines, coffee machines and parts, ice makers, wine dispensers, popcorn vending machines, claw crane vending machines, and more.


We welcome overseas distributors, wholesalers, and project contractors for long-term exclusive regional cooperation with tailored dealer support policies.

FAQ

What payment terms do you accept?

We accept the following payment methods:

T/T (Telegraphic Transfer) (standard for most orders):30% deposit to confirm the order; 70% balance paid before shipment.

Irrevocable Letter of Credit (L/C at sight) (available for large orders).


What are your shipping and delivery options?

What is your production lead time?

What after-sales support do you provide?

How do you support spare parts supply and delivery?
