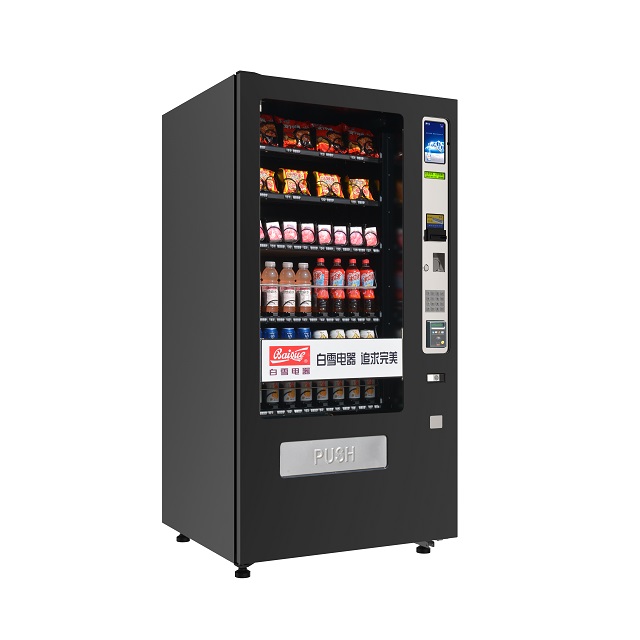

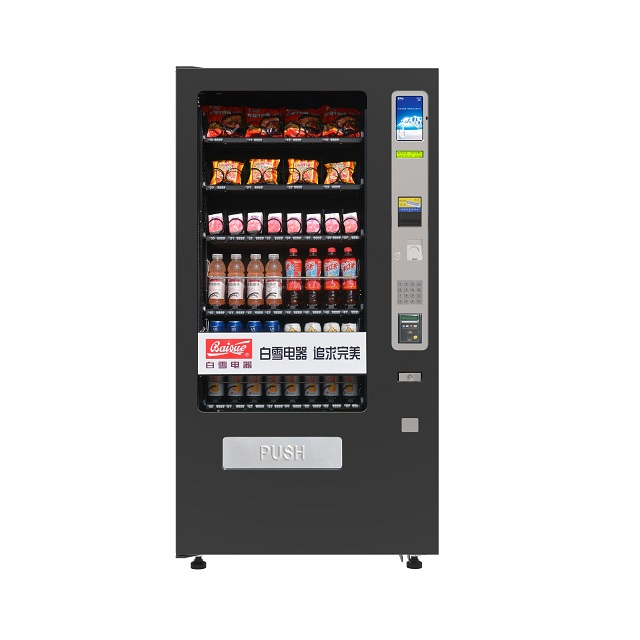

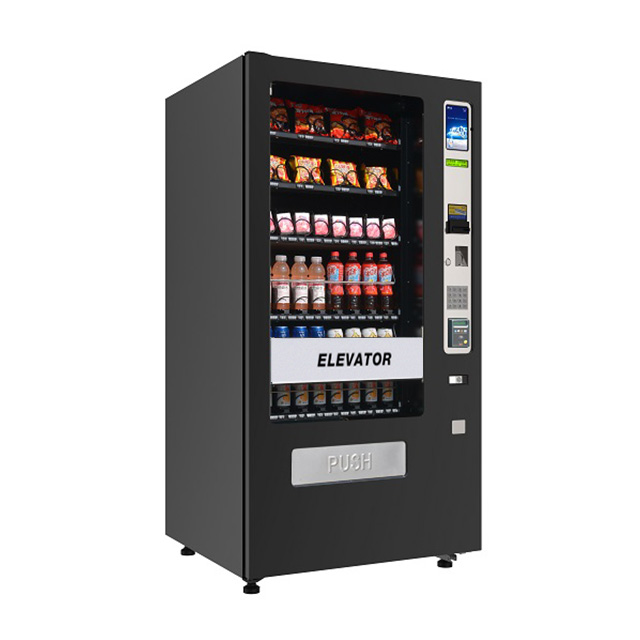

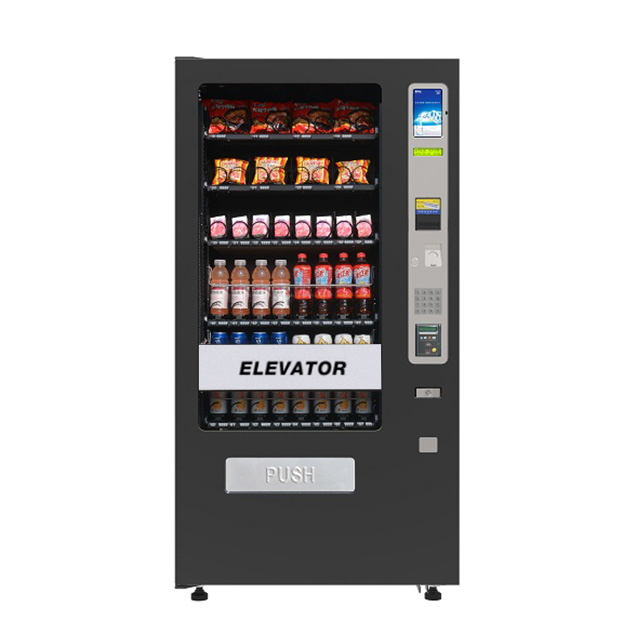

VCM2-4000S Elevating Combo Vending Machine

Availability:
Quantity:
  • VCM2-4000S

  • JSBS

  • 84768100

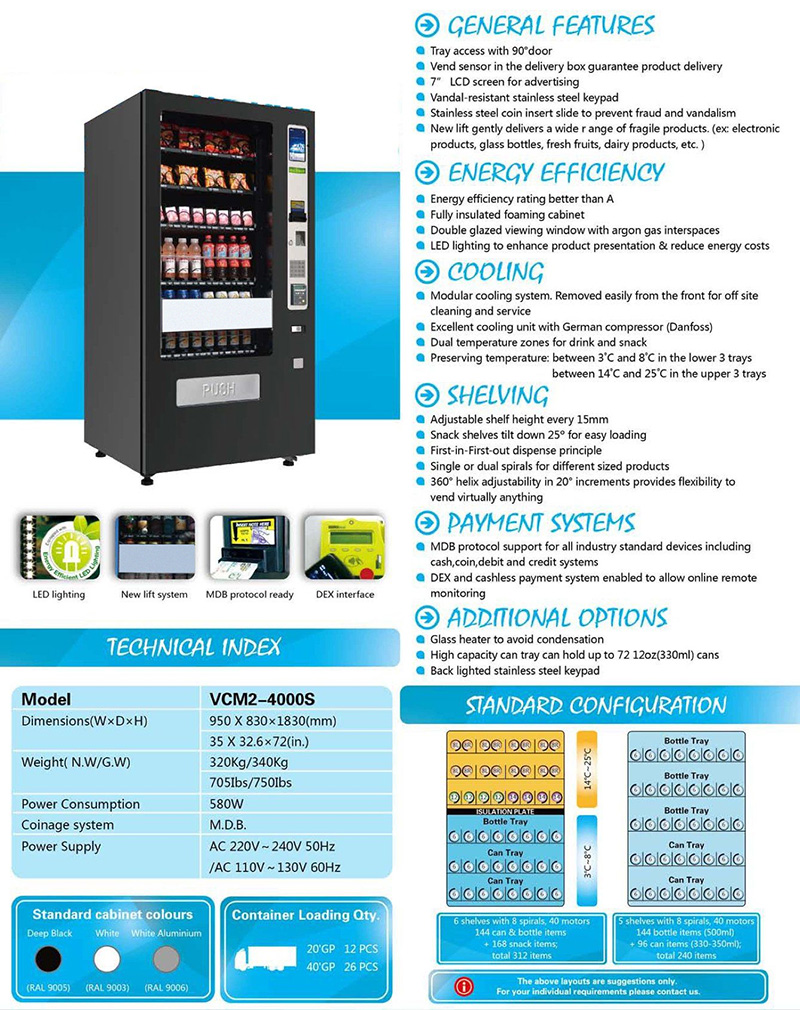

Product Description

GENERAL FEATURES :

  • Tray access with 90° door

  • Vend sensor in the dilivery box guarantee product delivery

  • 7" LCD screen for advertising

  • Vandal-resistant stainless steel keypad

  • Stainless steel coin insert slide to provent fraud and vandalism

  • New lift gently delivers a wide range of fragile product.



ENERGY EFFICIENCY :

  • Energy efficiencyt rating better than A

  • Fully insulated foaming cabinet

  • Double glazed viewing window with argon gas interspaces

  • LED lighting to enhance product presentation & reduce energy costs



COOLING :

  • Modular cooling system, removed easily from the front for off site cleaning and service

  • Excellent cooling unit with brand compressor

  • Dual temperature zones for drink and snack

  • Preserving temperature: between 3°C and 8°C in the lower 3 trays, between 14°C and 25°C in the upper 3 trays



SHELVING :

  • Adjustable shelf height every 15mm

  • Snack shelves tilt down 25° for easy loading

  • First-in-First-out dispense principle

  • Dual or single spirals for different sized products

  • 360° helix adjustablility in 20° increments provides flexibility to vend virtually anything



PAYMENT SYSTEMS :

  • MDB protocol support for all industry standard devices including cash, coin, debit and credit systems

  • DEX and cashless payment system enabled to allow online remote monitoring



ADDITIONAL OPTIONS :

  • Glass heater to avoid condensation

  • High capacity can tray can hold up to 72 12oz (330ml) cans

  • Back lighted stainless steel keypad



Product Parameters :

Parameters
                                                                             Detail
Dimensions 950mm (Width) * 1830mm (Height) * 830mm (Depth)
Net Weight 320kg
Rated Voltage AC220V240V/50HZ
Rated Power 580W
LCD Display 7 inches LCD screen (Optional)
Standard Interface MDBDEXRS232 protocol
Payment Systems MDB support for all industry standard devices (cash, coin, debit, credit)
Guaranteed Delivery System Light Gate Delivery sensor
Delivery Way New lift gently delivers fragile products (electronics, glass bottles, dairy, etc.)
Lighting System Vertical &horizonal LED lights
Machine Configuration 6 trays, 8 selections per tray (Total: 48 selections)
Capacity 312 items (144 snacks + 168 drinks)
Refrigeration Temperature +3°C ~ +25°C (adjustable), Refrigerant: R134a
Heating Function Optional (max 35 )
Telemetry System Optional
Other Optional Devices Cashless payment module, Heating Glass
Suitable Environment -15°C ~ 35°C, humidity ≤75% (indoor use)
Container Loading Qty20'GP: 12pcs; 40'GP: 28pcs
