| Quantity: | |
|---|---|

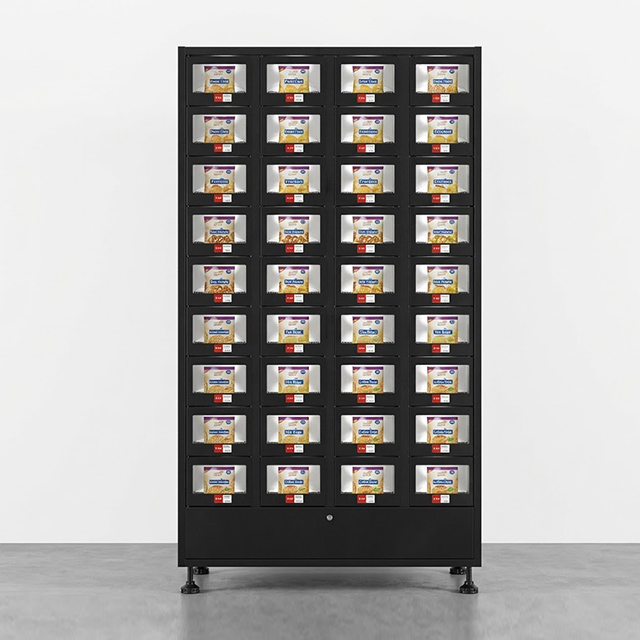

BV3600
84768900
| Model | BV3600 |
| Cabinet Type | Locker Vending Cabinet |
| Dimensions (W×D×H) | 925×400×1830(mm) |
| Weight (N.W/G.W) | 130 kg / 140 kg |
| No. of Shelves / Capacity | 9 Shelves / 36 Items |
| Single Lattice Dimensions | 185x115x380(mm) 36 in total |
| Power Supply | 220–240V / 50Hz; 110–130V / 60Hz |
| Data Communication | MDB Protocol |
| Container Loading Qty | 28 pcs / 20' GP; 56 pcs / 40' GP |
Features 36 individual compartments measuring 185 × 115 × 380 mm, providing organized storage and dispensing for a variety of products.
Connects to compatible NJJS vending machines, for payment and control through a master/slave configuration.
All-steel welded cabinet with anti-theft design and LED strip lighting.
Customizable grid sizes and cabinet colors, with one-touch unlocking for convenient restocking.
Height: 1830mm
Width: 1020mm
Depth: 400mm
N.W: 140kg
G.W: 150kg
No.of Shelves: 5
Capacity(Max): 19
Height: 1830mm
Width: 1042mm
Depth: 408mm
N.W: 140kg
G.W: 150kg
No.of Shelves: 8
Capacity(Max): 30
Height: 1830mm
Width: 925mm
Depth: 400mm
N.W: 130kg
G.W: 140kg
No.of Shelves: 9
Capacity(Max): 36
Height: 1830mm
Width: 1148mm
Depth: 400mm
N.W: 160kg
G.W: 170kg
No.of Shelves: 9
Capacity(Max): 42
Height: 1830mm
Width: 1385mm
Depth: 408mm
N.W: 175kg
G.W: 185kg
No.of Shelves: 10
Capacity(Max): 46
Pair the VCM3 combo vending machine with two BV3600 slave cabinets to expand storage capacity and product variety. A flexible solution for businesses that need more vending options in one location.
Product Selection & Payment: Select products and complete payment through the connected NJJS vending machine.
System Integration: The master vending machine provides payment and control functions for the connected locker cabinets.
Product Collection: Collect purchased products from the designated locker.
Up to four locker cabinets can be connected to one compatible master vending machine. The system configuration can be customized according to the customer's requirements.
Established in 2005, we are a leading vending machine manufacturer specializing in global export and distributor partnerships.
We operate two self-owned factories, JSBS and OMS, in Changshu, Jiangsu Province, offering a full product line including combo vending machines, coffee machines and parts, ice makers, wine dispensers, popcorn vending machines, claw crane vending machines, and more.
We welcome overseas distributors, wholesalers, and project contractors for long-term exclusive regional cooperation with tailored dealer support policies.
What payment terms do you accept?
We accept the following payment methods:
T/T (Telegraphic Transfer) (standard for most orders):30% deposit to confirm the order; 70% balance paid before shipment.
Irrevocable Letter of Credit (L/C at sight) (available for large orders).
What are your shipping and delivery options?
What is your production lead time?
What after-sales support do you provide?
How do you support spare parts supply and delivery?
