ZV-428FW smart weighing freezer vending machine - 428L frozen food cabinet

loading

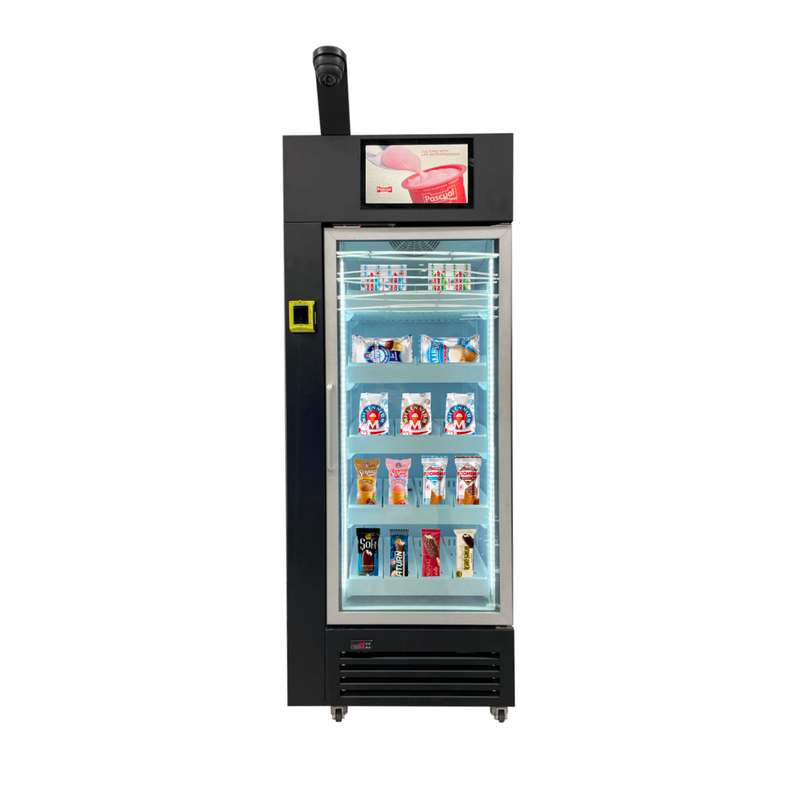

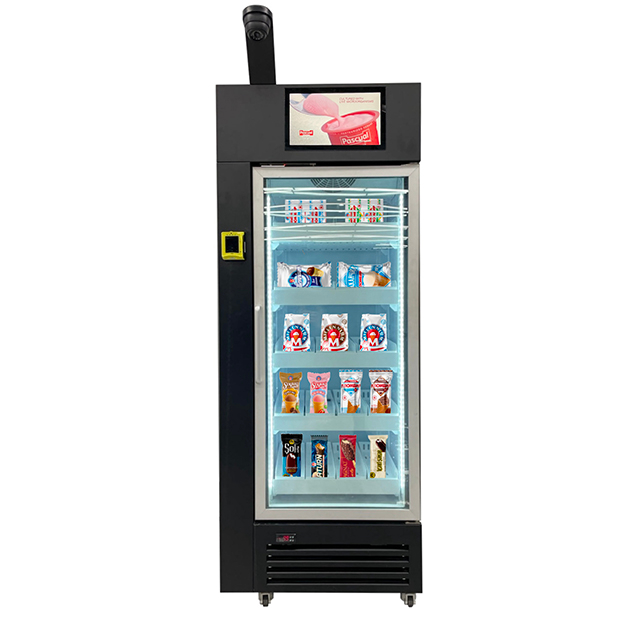

ZV-428FW smart weighing freezer vending machine - 428L frozen food cabinet ZV-428FW smart weighing freezer vending machine - 428L frozen food cabinet

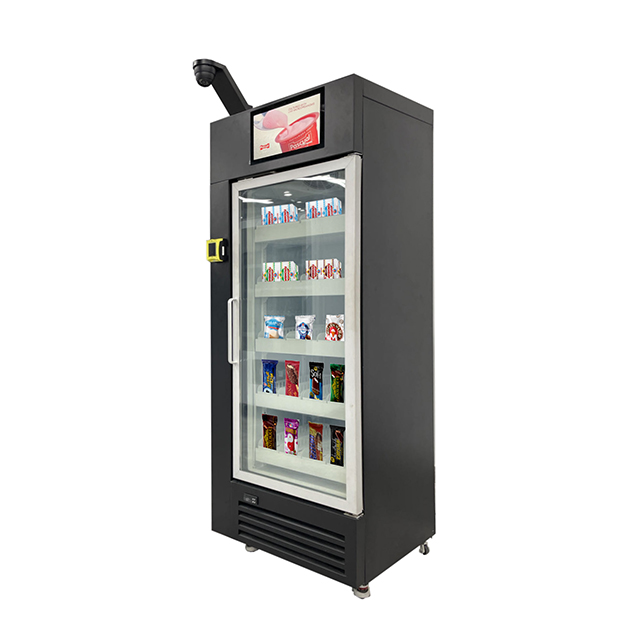

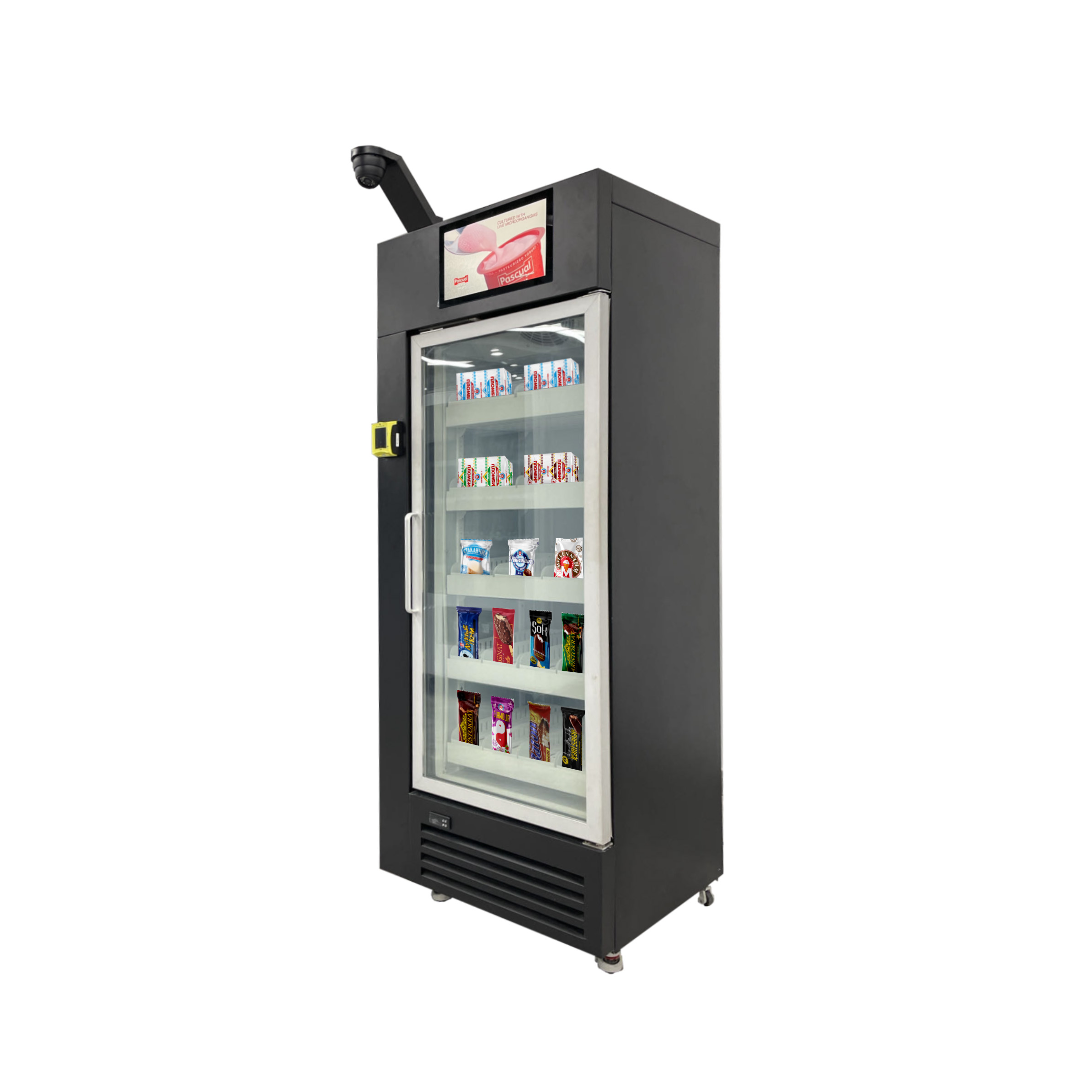

ZV-428FW smart weighing freezer vending machine, -20°C frozen cabinet ZV-428FW smart weighing freezer vending machine, -20°C frozen cabinet
ZV-428FW commercial smart freezer vending machine - open door design ZV-428FW commercial smart freezer vending machine - open door design

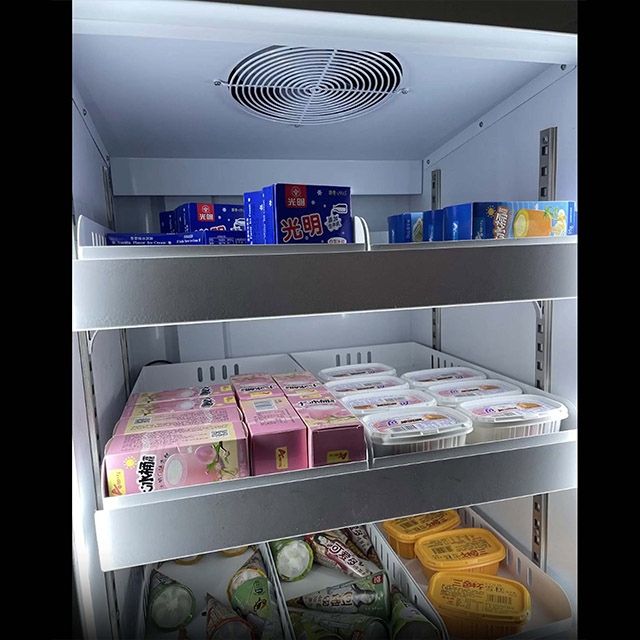

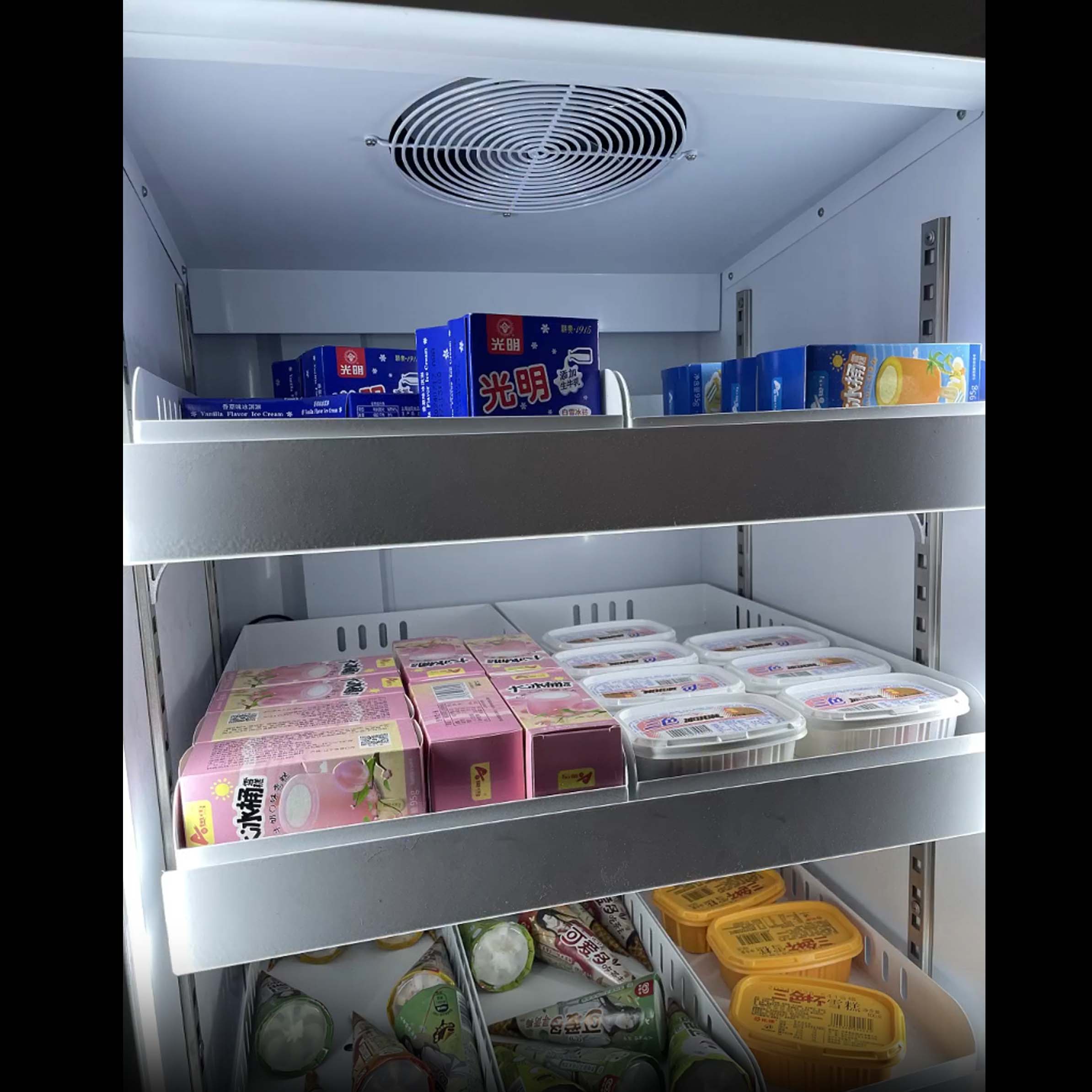

ZV-428FW 428L large capacity freezer interior - frozen food vending cabinet ZV-428FW 428L large capacity freezer interior - frozen food vending cabinet

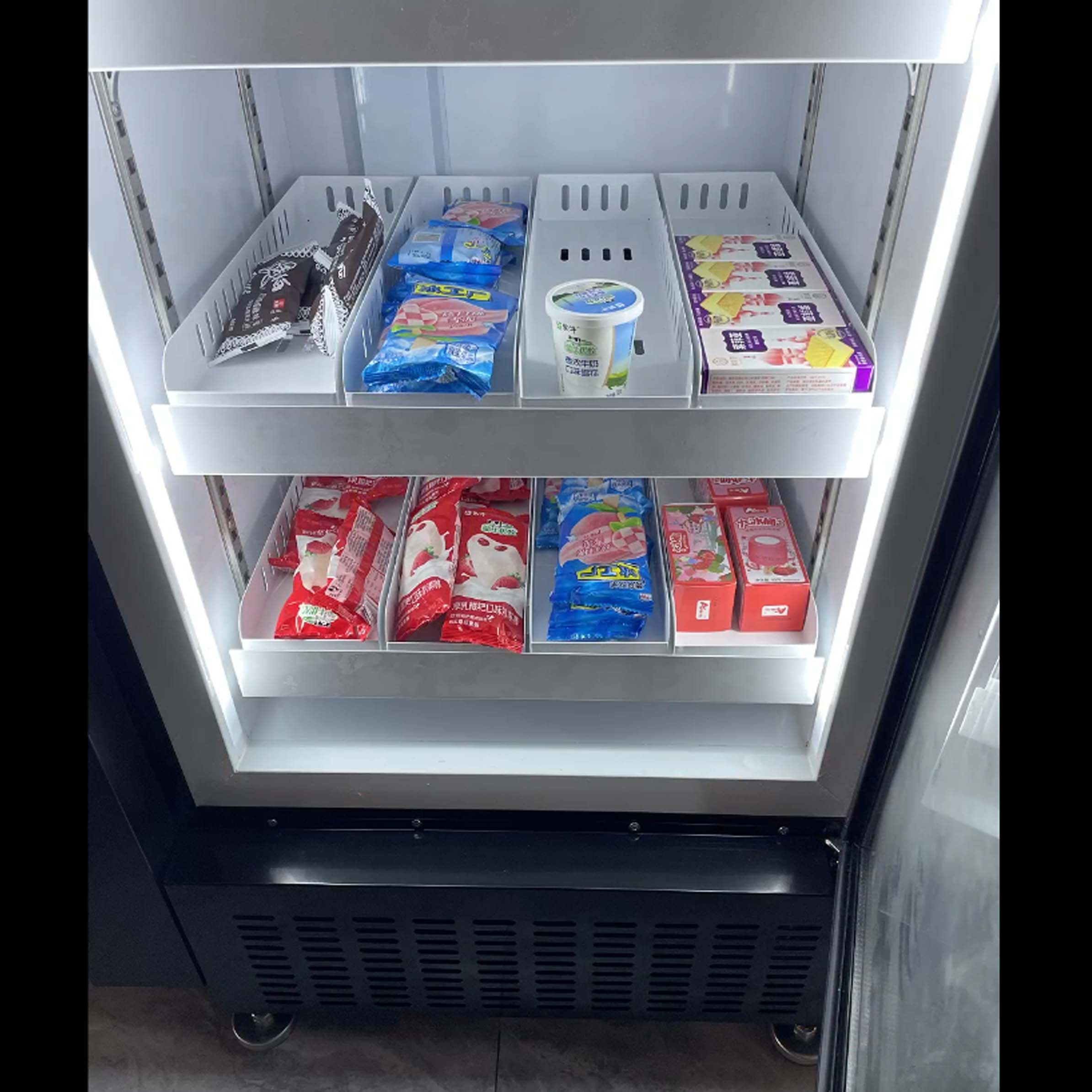

ZV-428FW smart freezer for ice cream & frozen food vending ZV-428FW smart freezer for ice cream & frozen food vending

ZV-428FW Smart Weighing Freezer Vending Machine | -20°C Frozen Cabinet

Availability:
Quantity:
  • ZV-428FW

  • 8418500000

Product Description


Product Description

Launch a food service business in 5 minutes using smart refrigerator fresh food vending machine

Smart weight sensing frozen product vending machine:

Our smart fridge technology is based on the weight sensing plate. This technology allows customers just need to tap their credit card, the electrical door will unlock, then grab the products, close the door, then the machine will charge the product automatically.

Customer buying process:

1. Swipe card to open the door.

2. Grab products

3. Close the door and go

4. Money deducted automatically



Core Features

  • Gravity Weight Recognition: Precise weight sensor for automatic settlement of frozen items.

  • Frozen Temperature Control: -20°C to -18°C stable temperature, perfect for ice cream & frozen food.

  • Open-Door Pick & Go: User-friendly operation, no button selection needed.

  • 428L Capacity: Single-door design (830×696×2160mm) with 160pcs max cargo.



Functional Highlights

  • Hollow Insulation Glass: Energy-efficient heat-insulating glass to maintain low temperature.

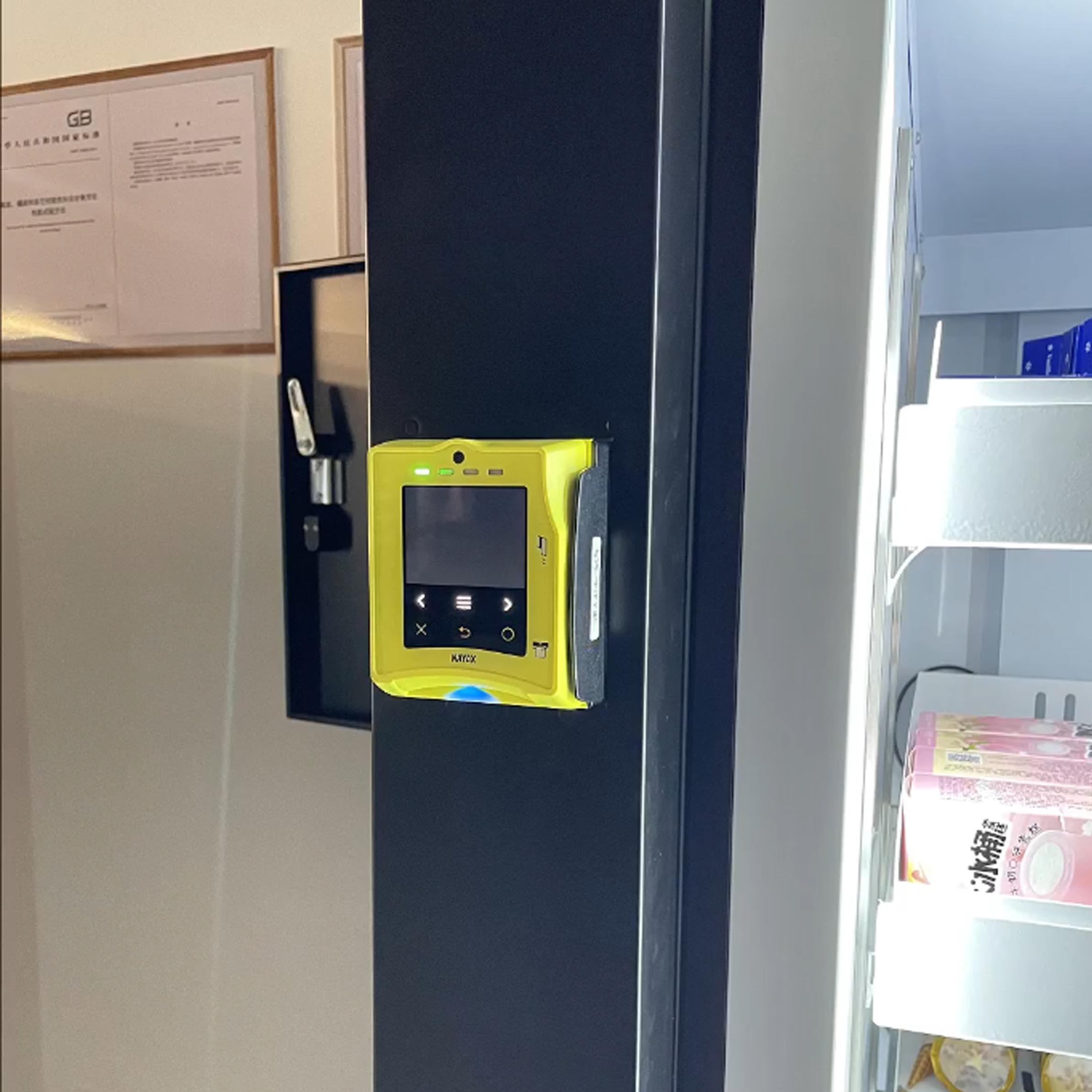

  • Electromagnetic Door Lock: Secure auto-lock system with card reader for cashless access.

  • LED Light Bar: Energy-saving lighting to enhance frozen product visibility.

  • Pre-Coated Steel Foaming Box: Durable, easy to clean, and excellent thermal insulation.

  • 22 inch advertising: Large advertising screen, it will display operation instructions after swiping the card.



Technical Parameters

ItemSpecification
Dimensions (W×D×H)830×696×2160(mm)
Weight (N.W/G.W)250kg/275kg
Grid5 th floor
Volume428L
Capacity (MAX) 160 pieces
Temperature Range-20°C up to -18°C
Power Consumption510W
RefrigerantR290a
Container Loading Qty16pcs/20GP, 32pcs/40GP
