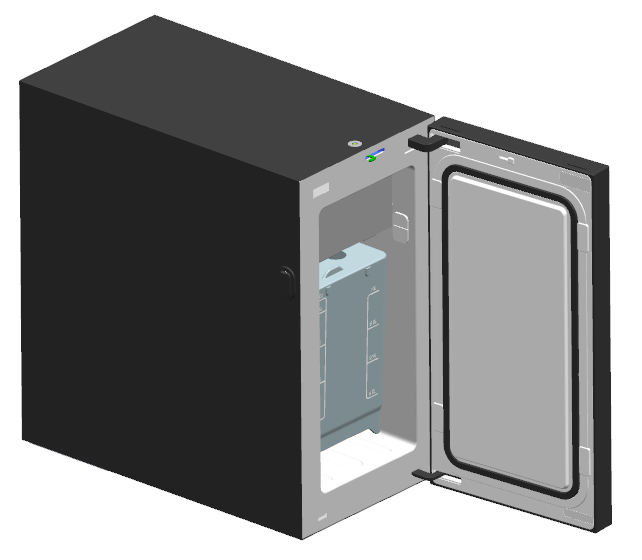

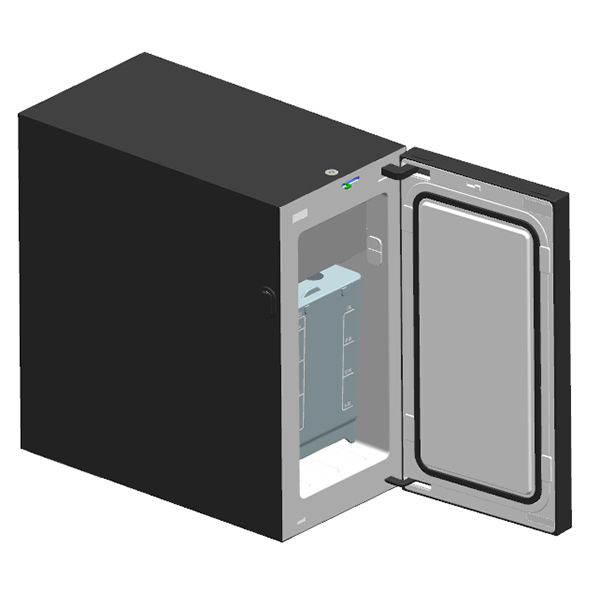

13L Large Capacity: Accommodates 3×1L milk cartons (93×59×210mm) or 4.5L milk containers (141×145×260mm), ideal for high-traffic commercial use.
Precise Temperature Control: 0-4°C stable temperature range (under ambient 25°C, 55%RH / 30°C, 65%RH) to preserve milk freshness.

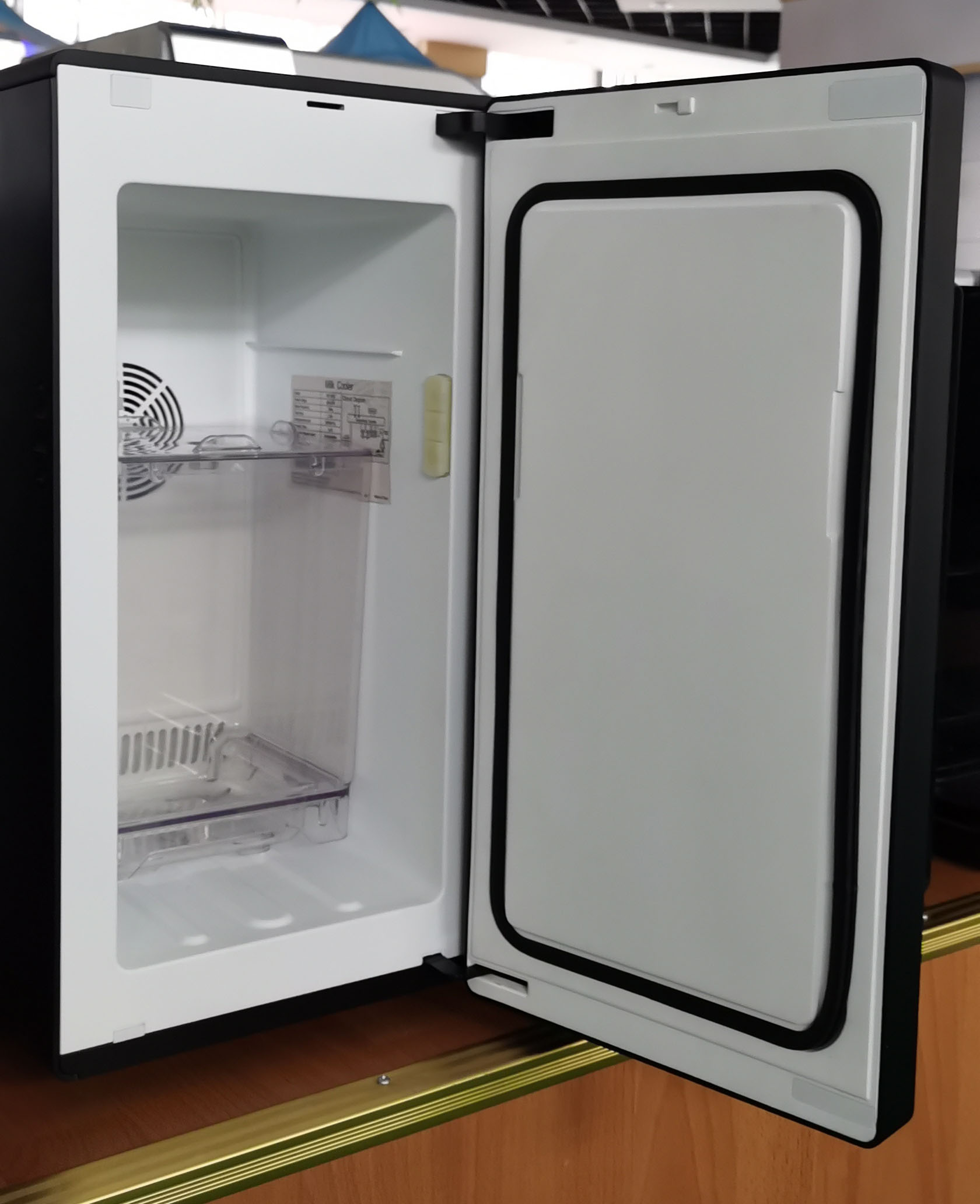

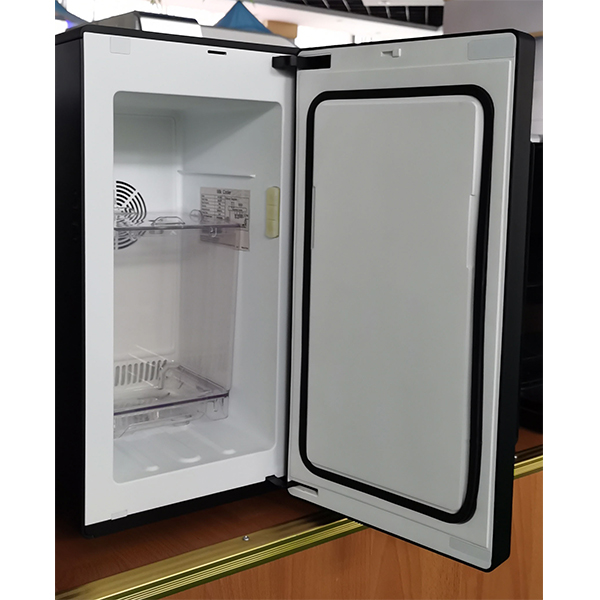

Air Cooling System: Compressor-driven forced air cooling for uniform temperature distribution and reliable performance.

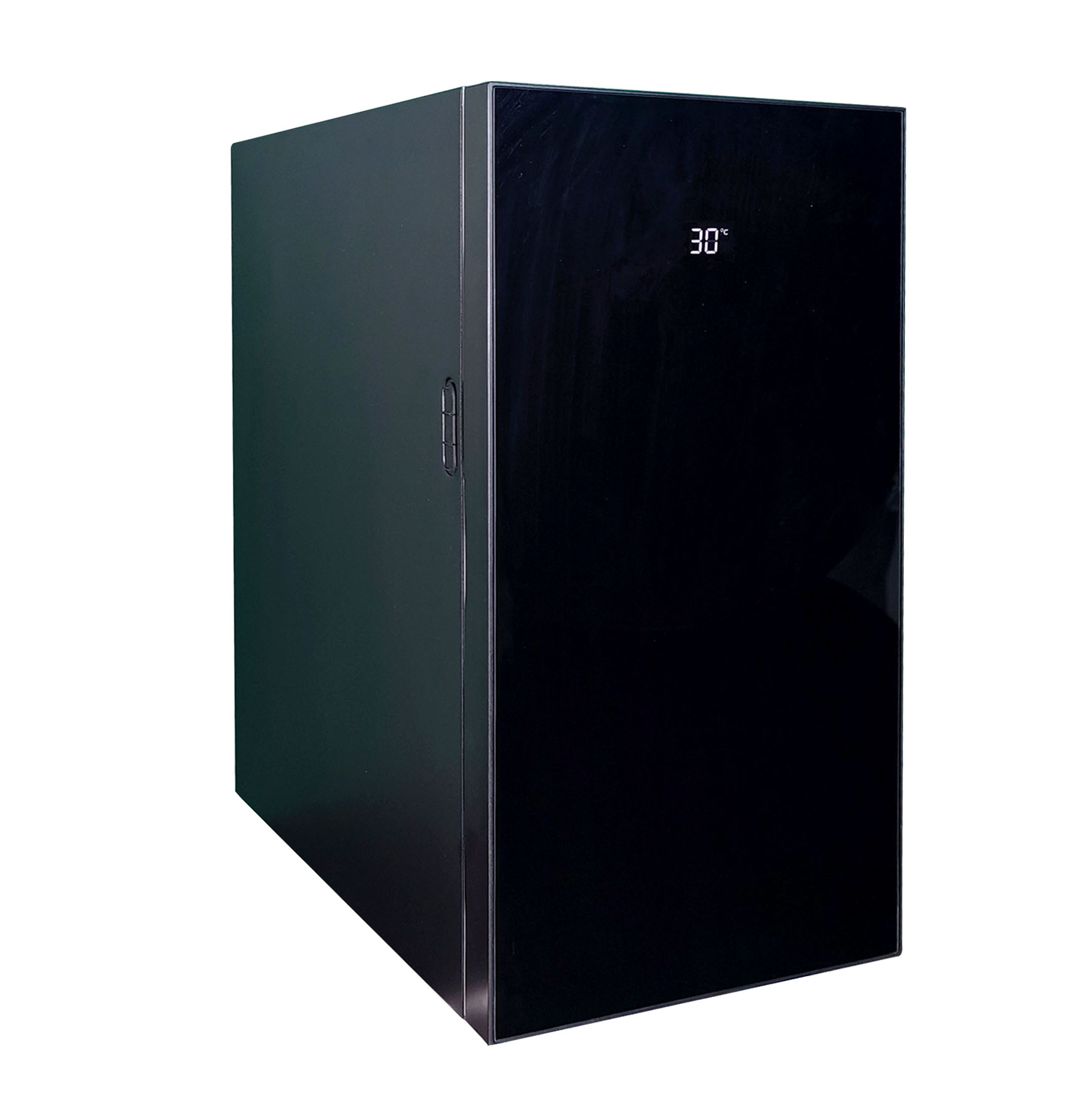

Touch Control Glass Foamed Door: LED display + touch controller integrated into the black glass foamed door, offering easy operation while maintaining excellent thermal insulation.
Durable Construction: Powder coated steel cabinet (RAL9005 black), stainless steel door frame, and glass foamed door for long-lasting insulation.
Smart Functions: Auto defrost, optional low milk level warning, and R485 protocol communication with coffee machines.
Technical Specifications
Item
Specification
Capacity
13L
Overall Dimensions (W×D×H)
240×450×475mm (9.45×17.72×18.70inch)
Cabinet Dimensions (w×d×h)
236×415×440.5mm (9.29×16.34×17.34inch)
Inner Dimensions (w1×d1×h1)
180×218×360mm (7.09×8.58×14.17inch)
Milk Tube Hole
Φ7, Φ10mm (Φ0.276, Φ0.394inch)
Net Volume
14.32L (0.51cuft)
Gross Volume
16.97L (0.80cuft)
Cooling System
Compressor, Air Cooling System
Temp. Display
LED Display & Touch Controller (Glass Door)
Packing Size (W1×D1×H1)
315×550×555mm (12.40×21.65×21.85inch)
Loading Qty
216pcs/20'GP, 432pcs/40'GP, 576pcs/40'HQ
Functional Highlights
Commercial Grade Design: Robust powder coated steel cabinet and stainless steel door frame for long-term commercial use.
Flexible Milk Compatibility: Fits standard 1L milk cartons or 4.5L milk containers, adapting to different usage scenarios.
Optional Smart Features: Add low milk level warning (infrared) or R485 communication with coffee machines for automated operation.
Easy Installation: Replaceable silicone rubber feet for stable placement, hidden hinge design for clean appearance.
High Loading Efficiency: Up to 576 units per 40'HQ container, cost-effective for bulk shipping.
