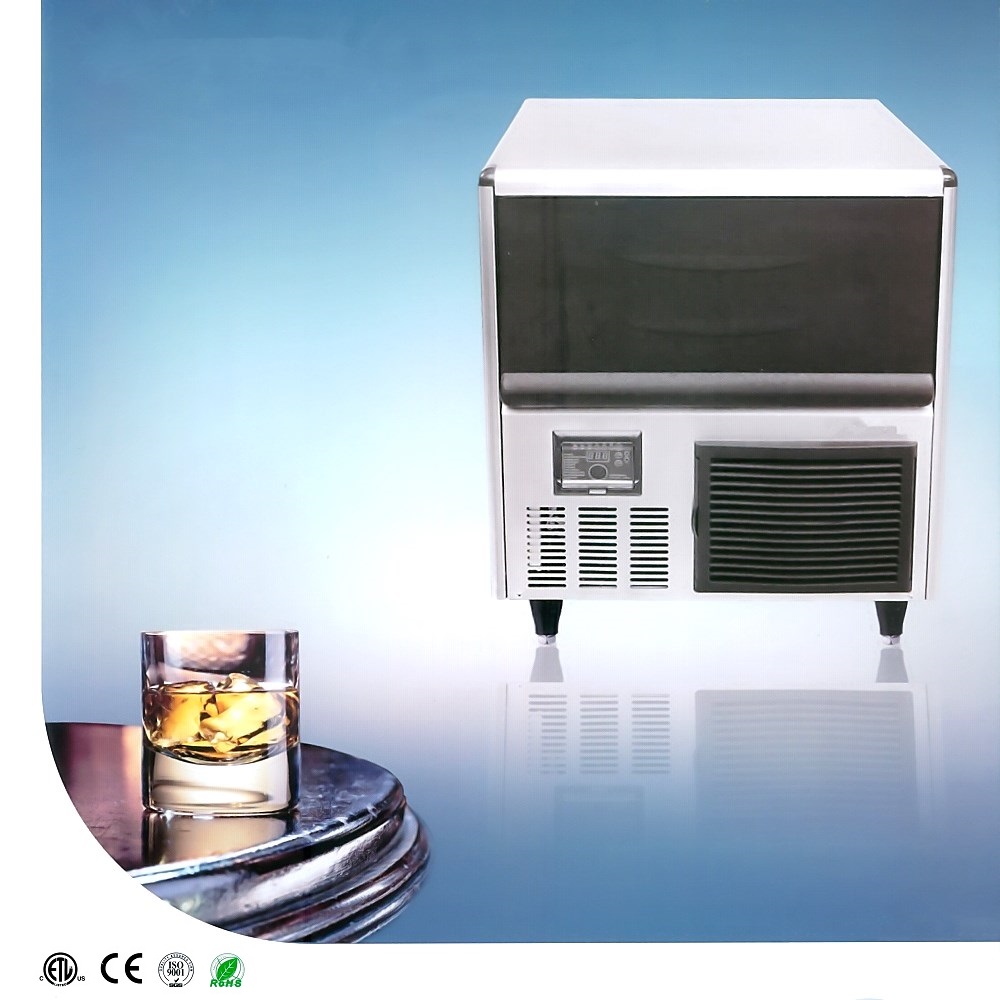

Under-counter Cube Ice Machine (SK-51B/81B/101B)

Quantity:
Inquire Add to Basket

  • SK-51B/81B/101B

  • 8418699020

This type is designed specially for Bar and Kitchen Equipment
Model Dimension(L*W*H) Output(lb/24hr) Bin Capacity Voltage (V/Hz) Power (W) Condenser Unit Refrigerant
SK-51B    650*640*785mm 110lb=50kg 55lb=25kg 220/50 350 Air R404A
SK-81B
 (Hot Sale)     		 650*640*785mm 176lb=80kg 55lb=25kg 220/50 420 Air R404A
SK-101B
 (Hot Sale)   		 650*640*785mm 220lb=100kg 55lb=25kg 220/50 830 Air R404A

Model Net Weight Gross Weight Carton Dimension(L*W*H) Loading Qty (20GP/40GP)
    SK-51B      45kg 50kg 745*740*780mm 72 / 144pcs
    SK-81B
 (Hot Sale)  		 58kg 65kg 745*740*780mm 72 / 144pcs
SK-101B
 (Hot Sale)   		 60kg 67kg 745*740*780mm 72 / 144pcs

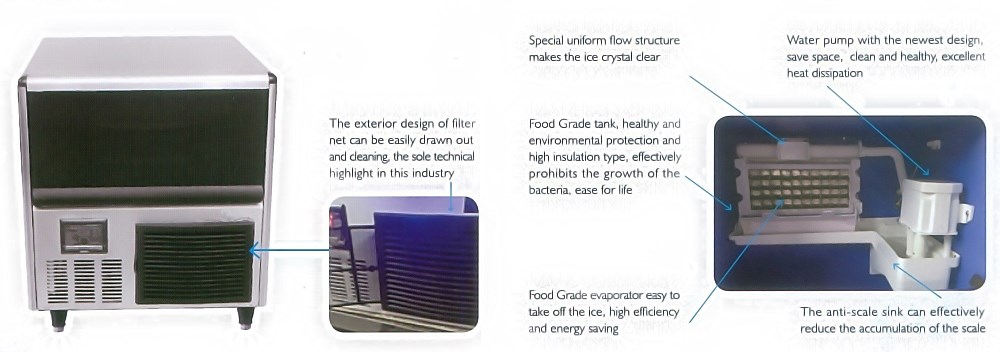

INNER COMPONENTS
SK-51B-101B INNER COMPONENTS

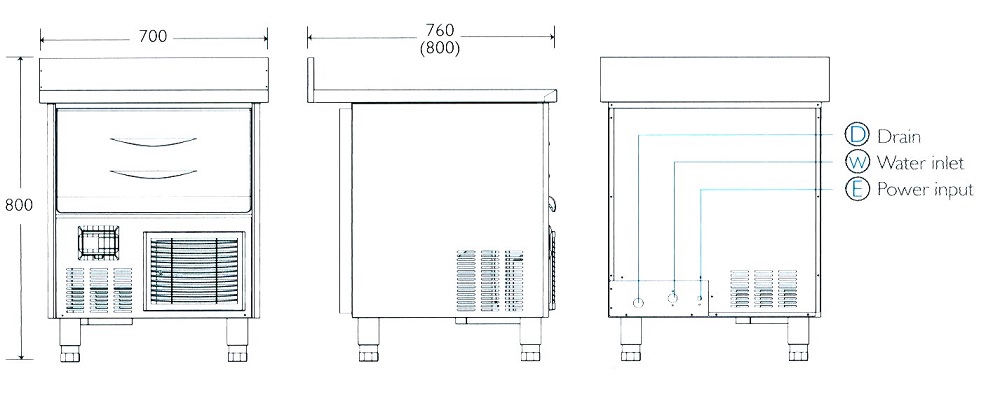

PRODUCT SIZE(Unit: mm)
SK-51B-101B SIZE
