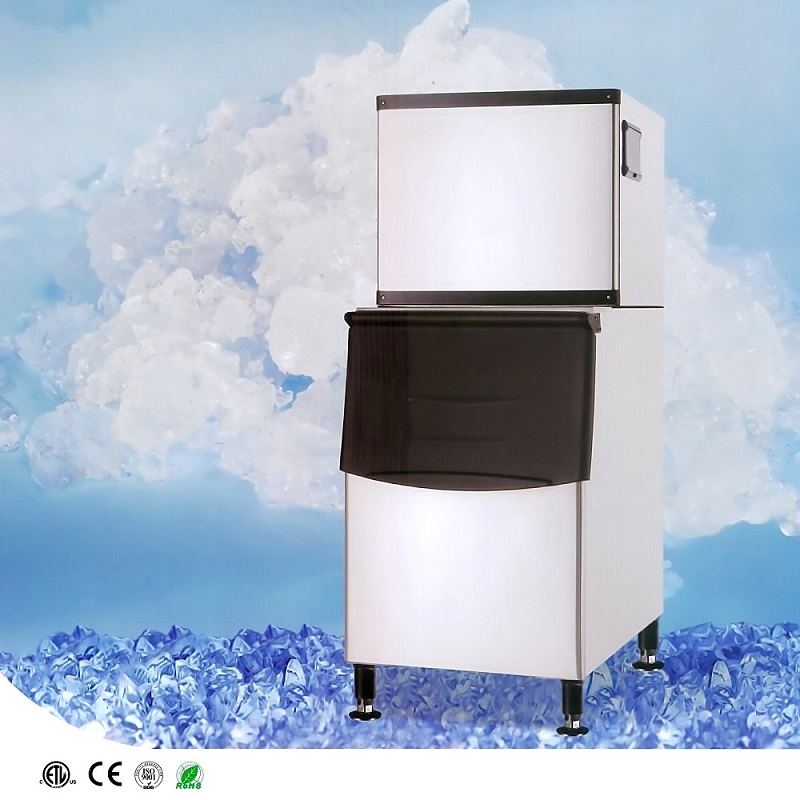

Flake Ice Machine (SK-258F/SK-358F/458F)

Quantity:
  • SK-258F/SK-358F/458F
  • 8418699020
Model Dimension
(L*W*H)
Output(lb/24hr) Bin Capacity Voltage(V/Hz) Power(W) Condenser Unit Refrigerant
SK-258F
(HotSale)
560*750*1900mm 572lb =260kg 230lb=105kg 220/50 900 Air R404A
SK-358F
(HotSale)
760*750*1900mm 792lb =360kg 275lb=125kg 220/50 990 Air R404A
SK-458F 760*750*1900mm 1012lb =460kg 275lb=125kg 220/50 1240 Air R404A

Model Net Weight of Main Machine Net Weight of Ice Bin Gross Weight of Main Machine Gross Weight of Ice Bin Paking Dimension of  Main Machine(L*W*H) Paking Dimension of     Ice bin(L*W*H) Loading Qty (20GP/40GP)
SK-258F
(HotSale)
71kg 40kg 89kg 50kg 650*695*815mm 850*890*1055mm 21 / 42pcs
SK-358F
(HotS ale)
91kg 45kg 112kg 50kg 850*695*815mm 850*890*1055mm 21 / 42pcs
SK-458F 94kg 45kg 116kg 50kg 850*695*815mm 850*890*1055mm 18 / 36pcs


ICE SHAPE
flake ice shape

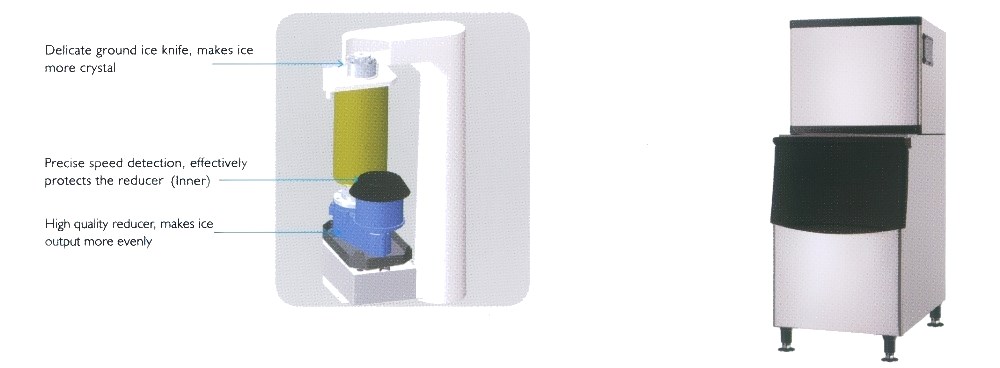

INNER COMPONENTS
SK-258F(358F、458F)INNER COMPONENTS

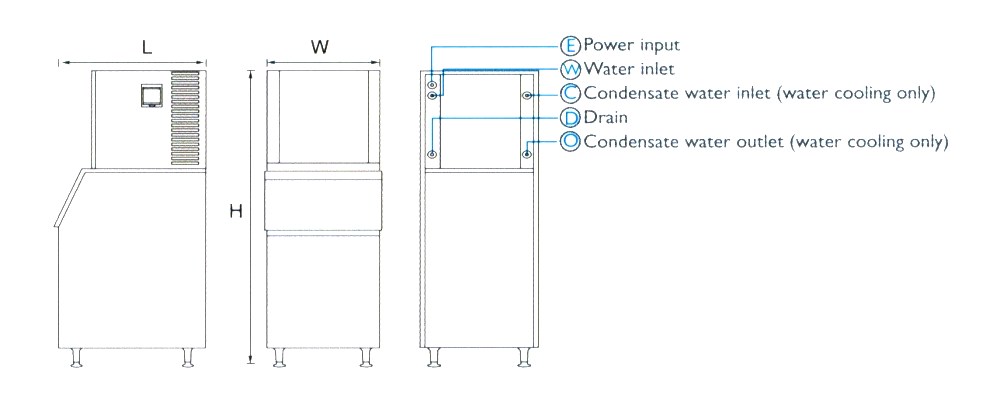

PRODUCT SIZE
(Unit: mm)
SK-258F(358F、458F SIZE)
