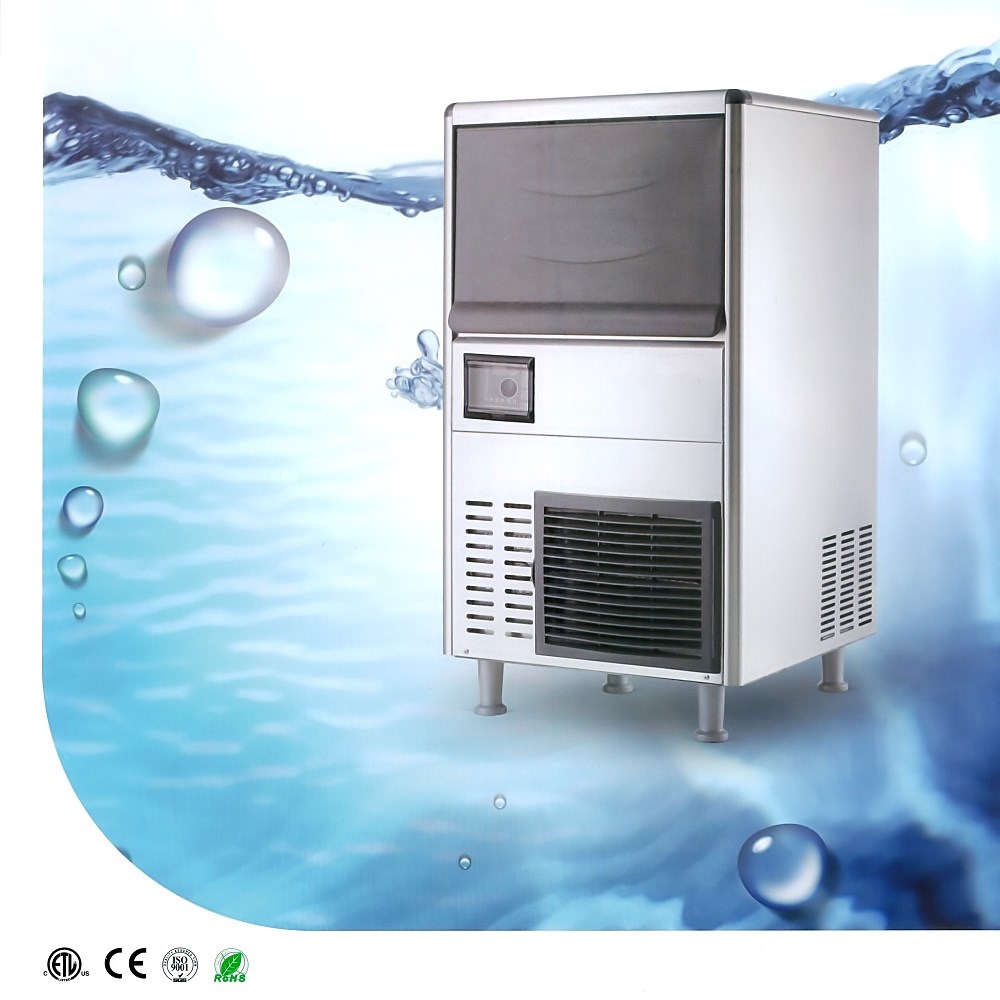

Cube Ice Machine (SK-31A/41A/51A/81A/91A/101A)

Quantity:
  • SK-31A/41A/51A/81A/91A/101A
  • 8418699020
Model Dimension(L*W*H) Output(lb/24hr) Bin Capacity Voltage (V/Hz) Power (W) Condenser Unit Refrigerant
SK-31A
 (Hot Sale)
460*430*800mm 68lb = 31 kg 22lb=10kg 220/50 270 Air R404A
SK-41A
 (Hot Sale)
520*550*960mm 90lb = 41 kg 44lb=20kg 220/50 340 Air R404A
SK-51A
 (Hot Sale)
520*550*960mm 112lb = 51 kg 44lb=20kg 220/50 350 Air R404A
SK-81A
 (Hot Sale)
650*640*1050mm 178lb = 81 kg 99lb=45kg 220/50 420 Air R404A
SK-91A   650*640*1050mm 200lb = 91 kg 99lb=45kg 220/50 685 Air R404A
SK-101A
 (Hot Sale)
650*640*1050mm 222lb = 101 kg 99lb=45kg 220/50 830 Air R404A

Model Net Weight Gross Weight Carton Dimension(L*W*H) Loading Qty (20GP/40GP)
    SK-31A
 (Hot Sale)
34kg 38kg 545*505*775mm 132 / 276pcs
    SK-41A
 (Hot Sale)
48kg 52kg 645*605*935mm 54/120pcs
SK-51A
 (Hot Sale)
48kg 55kg 645*605*935mm 54 / 120pcs
 SK-81A
 (Hot Sale)
60kg 69kg 745*740*1030mm 48 / 96pcs
SK-91A   61kg 70kg 745*740*1030mm 48 / 96pcs
  SK-101A
 (Hot Sale)
62lg 71kg 745*740*1030mm 48 / 96pcs

ICE SHAPE
cube ice shapecube ice

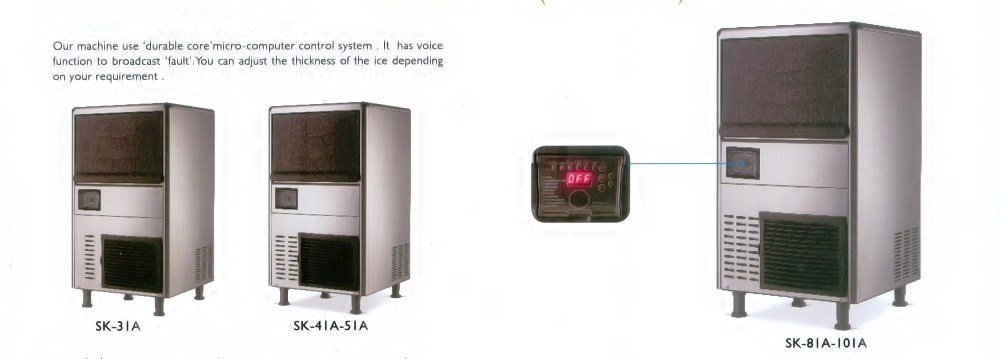

INNER COMPONENTS
INNER COMPONENTS

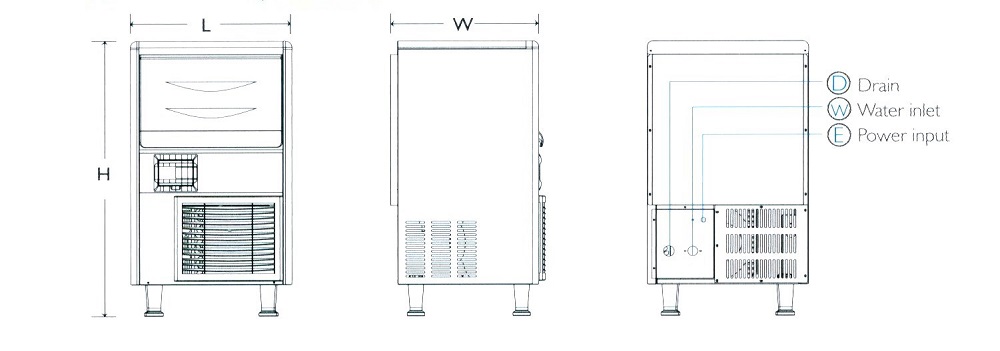

PRODUCT SIZE
SK-31A-101A SIZE
