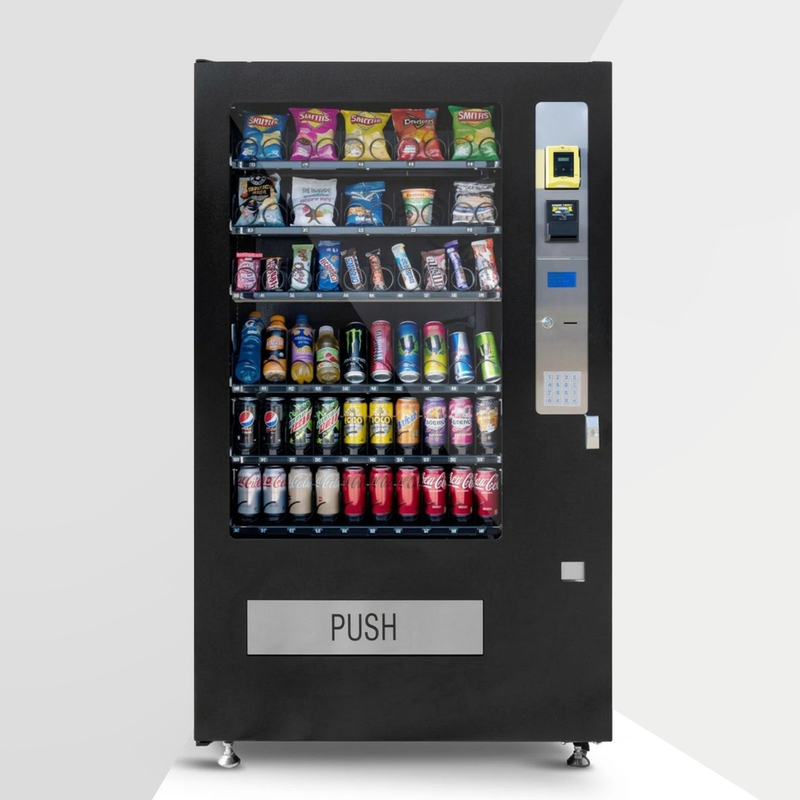

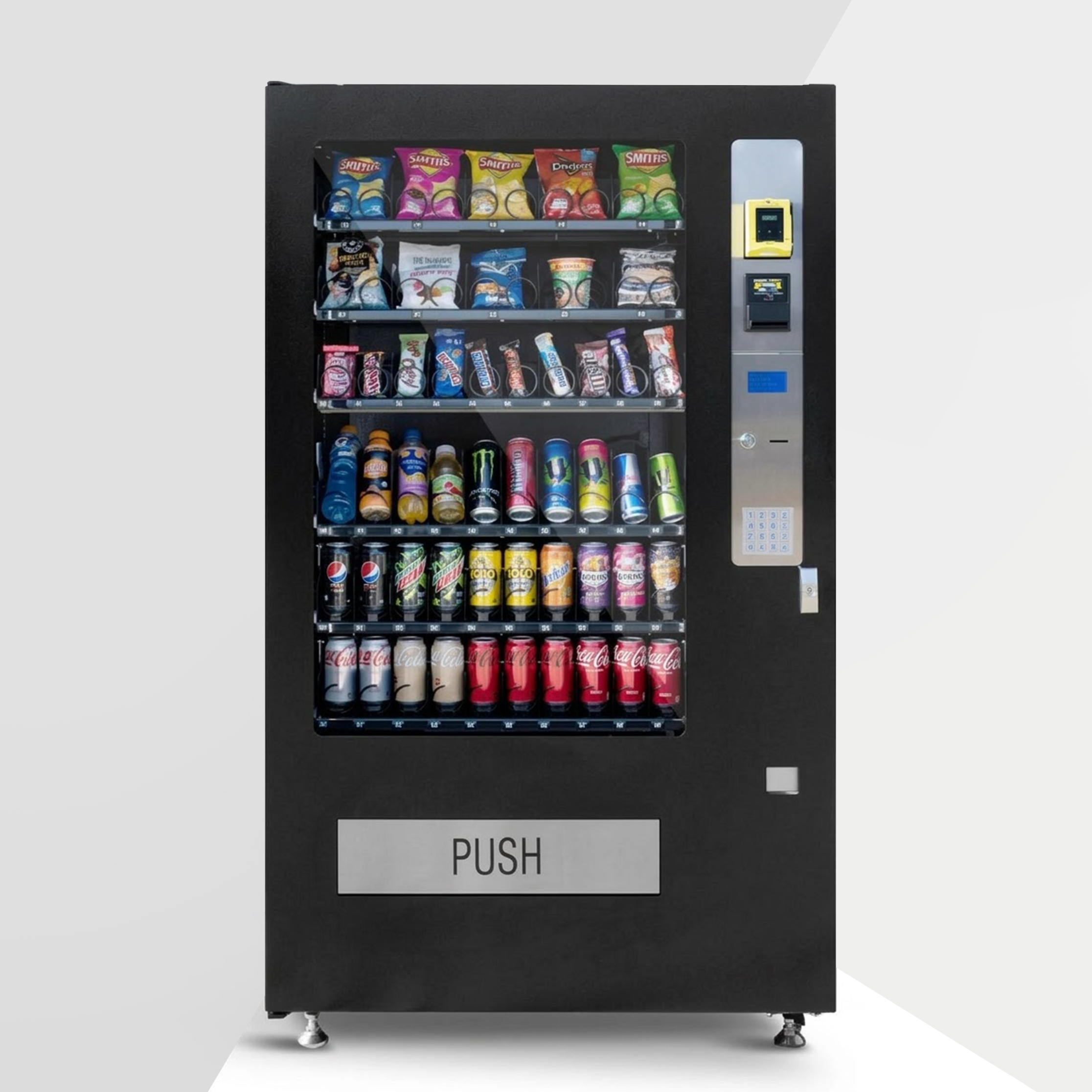

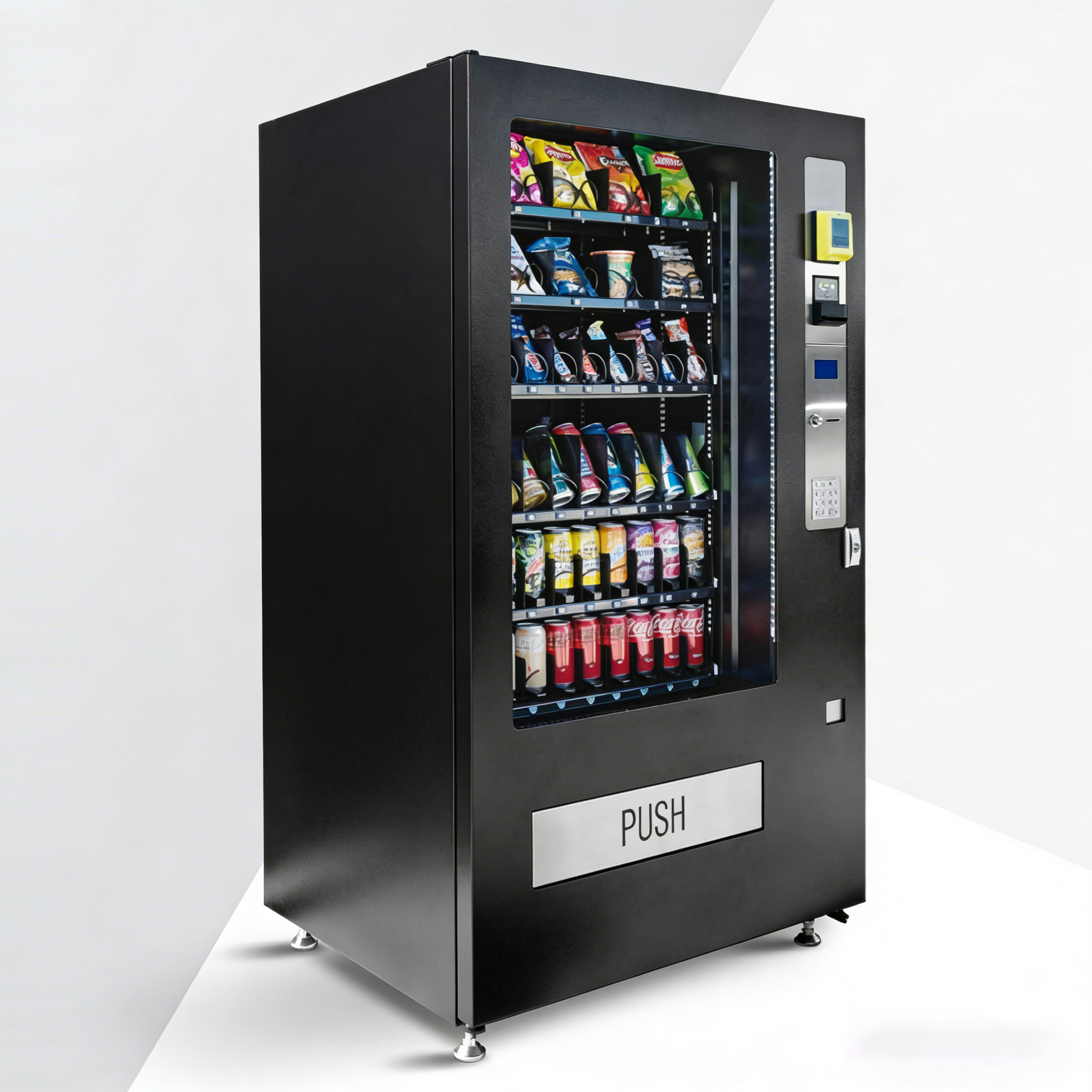

VCM5
84768100
Key Feature :
Danfoss compressor
Powerful refrigeration
Cashless ready
Stainless steel panel
Vend sensors
LED lighting
High capacity tray options
Heating glass
3 wire latest motor system
Dual zone temperature
Narrow door cutout to get in to 760mm doors
7th tray option
Product Parameters :
Electrical Power Supply | 220V/110V, 50/60HZ, 20amp Fuse |
Payment System | MDB Devices |
Refrigeration | 3/4 HP R134a R513a |
Inner Temperature | 4°C to-20 °C (Adjustable) |
Lighting | 3 sides LED strips |
Dimensions | Height:1830mm, Width: 1056mm, Depth: 830mm |
Weight | 365kg |
Container Quantity | 12pcs/20FT, 28pcs/40FT |
Features :
6 trays with all helixes, glass front door, cooled vending machine
3/4HP refrigeration unit with cooling control board to control
Adjustable shelf height
Double glazing glass viewing window
Fully insulate cabinet/secure door with wrapround enclosures
4pcs interior storage drawers is convient for operator to store products
High strength cabinet/each tray tilts down 45° For easy loading
Lockable cash box/accessible to young people and wheelchair users
Electronic multiple pricing accessed through keypad
Full diagnostic program accessed through keypad
Compatible with all main MDB devices
Integral, push button, mains safety circuit breaker/24V DC motors
Drop sensor: If after selection, a product fails to fall into the retrieval chamber then the vend motor will turn more times. If the product still fails to fall the customer is given the choice to make another selection or receive a refund.

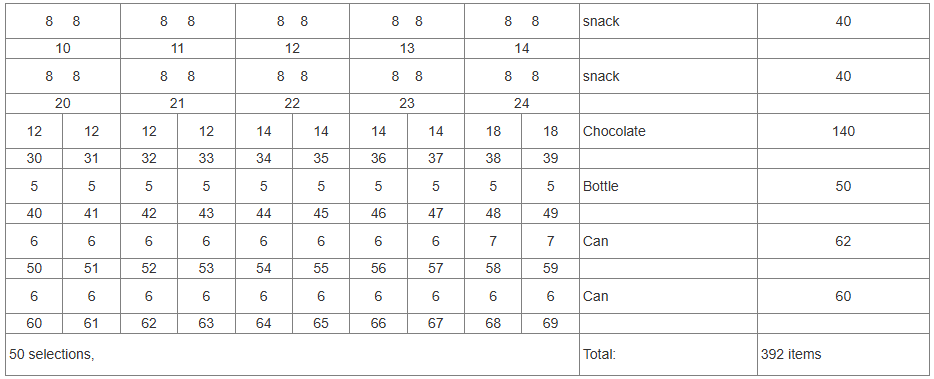

VCM5 Standard Tray Configuration:
CE, IC, RCM
We Support all kinds of MDB protocol payment devices:
Application case :
FAQ :
1. What is the lift time of our vending machines?
A: About 10 years, we started to export since 2005.
2. What is the warranty and after services?
A: One year after you receiving the machines. We supply free technical support online by email, photos, video or video calling.
