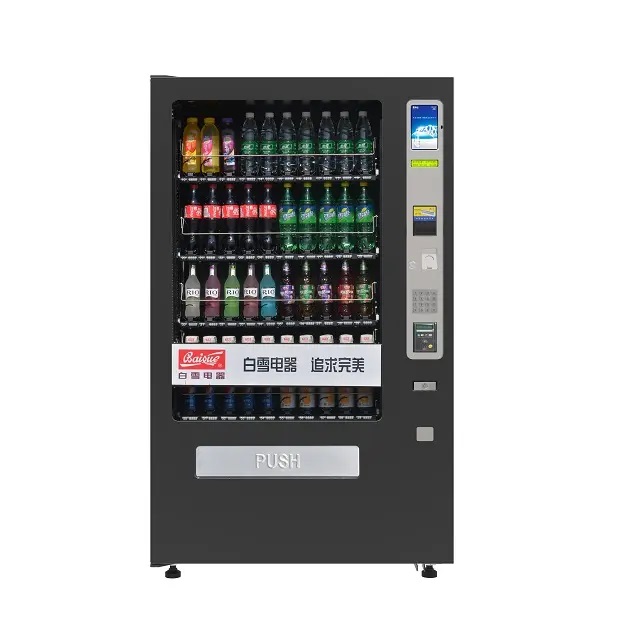

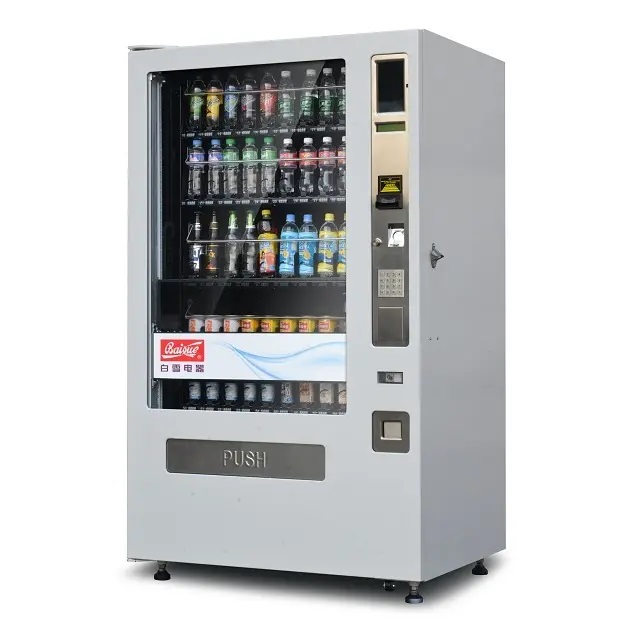

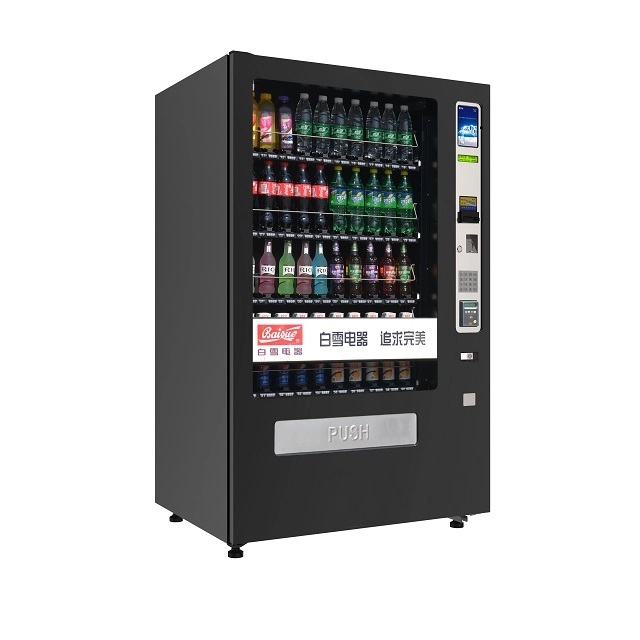

VCM2-5000S
JSBS
84768100
Tray access with 90° door
Vend sensor in the delivery box guarantee product delivery
7" LCD screen for advertising
Vandal-resistant stainless steel keypad
Stainless steel coin insert slide to provent fraud and vandalism
New lift gently delivers a wide range of fragile products.
Energy efficiency rating better than A
Fully insulated foaming cabinet
Double glazed viewing window with argon gas interspaces
LED lighting to enhance product presentation & reduce energy costs
Modular cooling system, removed easily from the front for off site cleaning and service
Excellent cooling unit with brand compressor
Dual temperature zones for drink and snack
Preserving temperature: between 3°C and 8°C in the lower 3 trays, between 14°C and 25°C in the upper 3 trays
Adjustable shelf height every 15mm
Snack shelves tilt down 25° for easy loading
First-in-First-out dispense principle
Dual or single spirals for different sized products
360° helix adjustablility in 20° increments provides flexibility to vend virtually anything
MDB protocol support for all industry standard devices including cash, coin, debit and credit systems
DEX and cashless payment system enabled to allow online remote monitoring
Glass heater to avoid condensation
High capacity can tray can hold up to 90 12oz (330ml) cans
Back lighted stainless steel keypad
| Parameters | Detail |
| Dimensions | 1095mm (Width) * 1830mm (Height) * 830mm (Depth) |
| Net Weight | 365kg |
| Rated Voltage | AC220V~240V/50HZ; 110~130V/60HZ |
| Rated Power | 670W |
| LCD Display | 7 inches LCD screen (Optional) |
| Standard Interface | MDB、DEX、RS232 protocol |
| Payment Systems | MDB support for all industry standard devices (cash, coin, debit, credit) |
| Guaranteed Delivery System | Light Gate Delivery sensor |
| Delivery Way | New lift gently delivers fragile products (electronics, glass bottles, dairy, etc.) |
| Lighting System | Vertical &horizonal LED lights |
| Machine Configuration | 6 trays, 10 selections per tray (Total: 60 selections) |
| Capacity | 390 items (210 snacks + 180 drinks) |
| Refrigeration Temperature | +3°C ~ +25°C (adjustable), Refrigerant: R134a |
| Heating Function | Optional (max 35 ℃) |
| Telemetry System | Optional |
| Other Optional Devices | Cashless payment module, Heating Glass |
| Suitable Environment | -15°C ~ 35°C, humidity ≤75% (indoor use) |
| Container Loading Qty | 20'GP: 12pcs; 40'GP: 28pcs |
